IBACCWL ;EDE/TPF - ACC (Automated Community Care) Encounters - COMMON LIST TEMPLATE API ; 12-SEP-2023 ; 12-SEP-2023
Source file <IBACCWL.m>

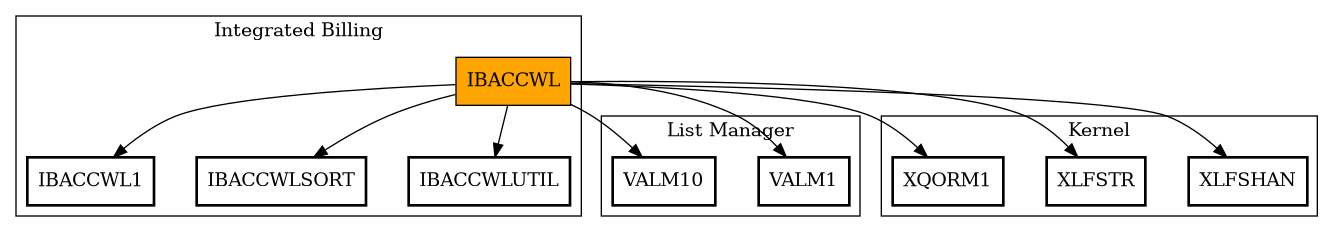

| Package | Total | Call Graph |
|---|---|---|
| Integrated Billing | 3 | PULLLIST^IBACCWL1 ($$DISPSORTCRIT,INIT)^IBACCWLSORT $$ISTESTER^IBACCWLUTIL |
| Kernel | 3 | ($$CPUTIME,$$ETIMEMS)^XLFSHAN $$REPLACE^XLFSTR DISP^XQORM1 |
| List Manager | 2 | PAUSE^VALM1 CLEAN^VALM10 |
| action | A | extended action | Ea | event driver | Ed | subscriber | Su | protocol | O | limited protocol | LP | run routine | RR | broker | B | edit | E | server | Se | P | screenman | SM | inquire | I |

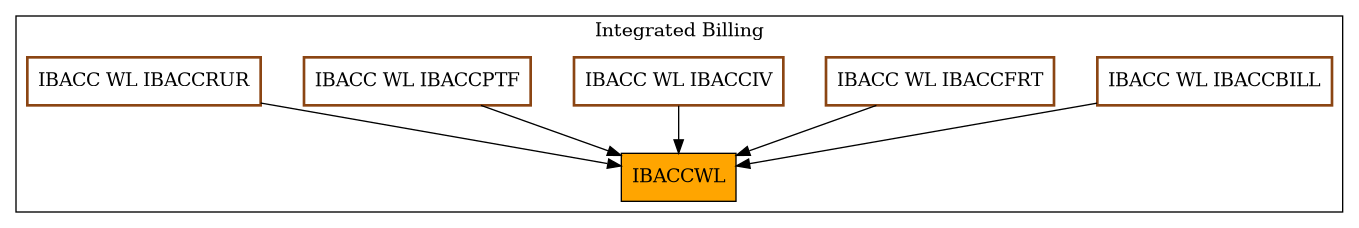

| Package | Total | Caller Graph |
|---|---|---|
| Integrated Billing | 5 | IBACC WL IBACCBILL IBACC WL IBACCFRT IBACC WL IBACCIV IBACC WL IBACCPTF IBACC WL IBACCRUR |
| Name | Comments | DBIA/ICR reference |
|---|---|---|
| EN | ;
|
|
| HDR | ; -- header code
|
|
| INIT | ;EP -- init variables and list array
|
|
| IBUSERKEYSTR(IBUSERKEYSTR) | ;EP - GET EXTERNAL DISPLAY STRING FOR 'IBACC WL ACC CLAIMS WORKLIST' WORK GROUP
|
|
| NODATA(VALMQUIT) | ;EP - SHOULD WE QUIT BECAUSE NOTHING FOUND
|
|
| HELP | ; -- help code
|
|
| EXIT | ; -- exit code
|
|
| EXPND | ; -- expand code
|
| Name | Field # of Occurrence |
|---|---|
| PULLLIST^IBACCWL1 | INIT+28 |
| $$DISPSORTCRIT^IBACCWLSORT | HDR+4 |
| INIT^IBACCWLSORT | INIT+15 |
| $$ISTESTER^IBACCWLUTIL | INIT+33 |
| PAUSE^VALM1 | NODATA+8 |
| CLEAN^VALM10 | EXIT+2 |
| $$CPUTIME^XLFSHAN | INIT+23, INIT+24, INIT+30 |
| $$ETIMEMS^XLFSHAN | INIT+25, INIT+31 |
| $$REPLACE^XLFSTR | IBUSERKEYSTR+8 |
| DISP^XQORM1 | HELP+2 |
| Name | Line Occurrences |
|---|---|
| Function Call: WRITE |
|
| >> | Not killed explicitly |
| * | Changed |
| ! | Killed |
| ~ | Newed |
| Name | Field # of Occurrence |
|---|---|
| API | INIT+3~ |
| CPUELAPSED | INIT+4~, INIT+25*, INIT+26, INIT+31*, INIT+35, INIT+36 |
| CPUEND | INIT+4~, INIT+24*, INIT+25, INIT+30*, INIT+31 |
| CPUSTART | INIT+4~, INIT+23*, INIT+25, INIT+31 |
| CPUTRACK | INIT+4~ |
| CPUTRACK("INIT^IBACCWLSORT" | INIT+26* |
| DIR | NODATA+7~ |
| DUZ | INIT+33 |
| >> IBBILLER | INIT+15, INIT+28 |
| >> IBDAYSMAX | INIT+13*, INIT+15, INIT+28 |
| >> IBDIV | INIT+15, INIT+28 |
| IBICAMEFROMEE | INIT+15, INIT+17!, INIT+19! |
| IBSORT | EN+2~, HDR+4, INIT+15, INIT+28, NODATA+4 |
| IBSORTFIL | EN+2~ |
| IBUSERKEYSTR | INIT+3~, INIT+11*, IBUSERKEYSTR~, IBUSERKEYSTR+8, IBUSERKEYSTR+9*, IBUSERKEYSTR+11 |
| >> MAXNUMBER | INIT+37 |
| >> NAME | INIT+9 |
| NEWLMTEMP | IBUSERKEYSTR+1~, IBUSERKEYSTR+8*, IBUSERKEYSTR+9 |
| REP | IBUSERKEYSTR+1~, IBUSERKEYSTR+8 |
| REP( | HDR+5 |
| REP("IBACCBILL" | IBUSERKEYSTR+2* |
| REP("IBACCFRT" | IBUSERKEYSTR+3* |
| REP("IBACCHIMS" | IBUSERKEYSTR+5* |
| REP("IBACCIV" | IBUSERKEYSTR+6* |
| REP("IBACCRUR" | IBUSERKEYSTR+4* |
| REP("IBACCSUP" | IBUSERKEYSTR+7* |
| RETURN | INIT+3~, INIT+15, INIT+17, INIT+21 |
| RETURN(1 | INIT+17 |
| >> SESSIONKEY | HDR+5, INIT+9*, INIT+11 |
| SORTCRIT | HDR+2~, HDR+4*, HDR+6 |
| U | INIT+17 |
| >> VALMAR | INIT+7, NODATA+2 |
| >> VALMHDR | HDR+4 |
| >> VALMHDR(1 | HDR+5* |
| >> VALMHDR(2 | HDR+3*, HDR+6* |
| VALMQUIT | INIT+17*, INIT+21, INIT+39, NODATA~, NODATA+2, NODATA+9* |
| >> VALMSG | HDR+9* |
| >> X | HELP+2* |
