Routine: OREDITOR3

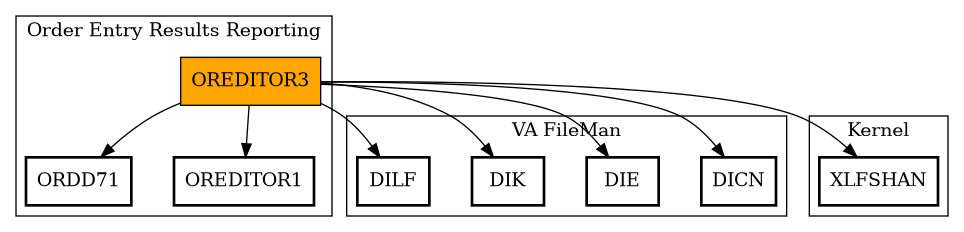

Package	Total	Call Graph
VA FileMan	4	FILE^DICN FILE^DIE ^DIK $$IENS^DILF
Order Entry Results Reporting	2	($$ISLISTCOMP,GETLONGLIST,GETPLUGINS,GETSCHEMAS)^ORDD71 (PARSETEXT,PASSINVALUES,SETFINALTMP,SETHASH,SETHASHARRAY,SETHASHTOTAL)^OREDITOR1
Kernel	1	$$GENAREF^XLFSHAN

Name	Comments	DBIA/ICR reference
EDITOR(INPUTS)	;
BLD(INPUTS)	;
DELETE(IARRAY)	;
DIFFCONTROL(OBJ,FDA,HARRAY,IARRAY,IDX)	;
DIFFEDITOR(OBJ,FDA,HARRAY,IARRAY,TMPSUB)	;
FDAEDITOR(OBJ,FDA,IENS,TMPSUB)	;
FDACONTROL(OBJ,FDA,IENS)	;
GETITEM(ITEM,IDX,HARRAY)	;
SAVE(INPUTS)	;
SETNEWCONTROL(OBJ,FDA,IARRAY,IDX)	;
SETNEWEDITOR(OBJ,FDA,IARRAY,TMPSUB)	;

Name	Field # of Occurrence
FILE^DICN	SETNEWCONTROL+7, SETNEWEDITOR+6
FILE^DIE	SAVE+19
^DIK	DELETE+4
$$IENS^DILF	DIFFCONTROL+2, DIFFEDITOR+2, SETNEWCONTROL+10, SETNEWEDITOR+8
$$ISLISTCOMP^ORDD71	GETITEM+28
GETLONGLIST^ORDD71	BLD+8
GETPLUGINS^ORDD71	BLD+7
GETSCHEMAS^ORDD71	BLD+9, BLD+10
PARSETEXT^OREDITOR1	FDAEDITOR+6
PASSINVALUES^OREDITOR1	BLD+2
SETFINALTMP^OREDITOR1	BLD+24
SETHASH^OREDITOR1	GETITEM+16, GETITEM+22, GETITEM+38, GETITEM+45
SETHASHARRAY^OREDITOR1	SAVE+5
SETHASHTOTAL^OREDITOR1	BLD+22
$$GENAREF^XLFSHAN	DIFFCONTROL+3, DIFFEDITOR+4, SAVE+4

FileNo	Call Tags
^ORE(101.74 - [#101.74]	Classic Fileman Calls

Name	Line Occurrences (* Changed, ! Killed)
^ORE(101.74 - [#101.74]	BLD+12, BLD+13, DELETE+3, GETITEM+3, GETITEM+6, GETITEM+9, GETITEM+10, GETITEM+13, GETITEM+24, GETITEM+25 , GETITEM+30, GETITEM+39, GETITEM+43
^ORI(101.73 - [#101.73]	BLD+4, BLD+5
^TMP(	FDAEDITOR+7*, FDAEDITOR+8

Name	Line Occurrences
$$BLD	EDITOR+2
$$SAVE	EDITOR+1
DELETE	SAVE+21
DIFFCONTROL	SAVE+18
DIFFEDITOR	SAVE+12
FDACONTROL	DIFFCONTROL+4, SETNEWCONTROL+11
FDAEDITOR	DIFFEDITOR+5, SETNEWEDITOR+9
GETITEM	BLD+14
SETNEWCONTROL	SAVE+17
SETNEWEDITOR	SAVE+13

Local Variables

Legend:

>>	Not killed explicitly
*	Changed
!	Killed
~	Newed

Name	Field # of Occurrence
CACHESUB	BLD+1~, BLD+2
CNT	BLD+1~, BLD+4, BLD+6, BLD+12*, BLD+15
DA	DELETE+1~, DELETE+3, DELETE+4, DIFFCONTROL+1~, DIFFCONTROL+2, DIFFEDITOR+1~, DIFFEDITOR+2, SETNEWCONTROL+1~, SETNEWCONTROL+10, SETNEWEDITOR+1~ , SETNEWEDITOR+8*
DA(1	DIFFCONTROL+2, SETNEWCONTROL+2, SETNEWCONTROL+6, SETNEWCONTROL+10*
DATA	SAVE+1~, SAVE+2*
DATA("editors"	SAVE+8, SAVE+9
DATA("hashValues"	SAVE+3!
DFN	BLD+1~, BLD+2
DIC	SETNEWCONTROL+1~, SETNEWCONTROL+6, SETNEWEDITOR+1~, SETNEWEDITOR+5
DIC(0	SETNEWCONTROL+3, SETNEWEDITOR+3
DIK	DELETE+1~, DELETE+2*
DITEM	GETITEM+1~, GETITEM+38, GETITEM+45, GETITEM+46
DITEM("column"	GETITEM+32*
DITEM("columnSpan"	GETITEM+34*
DITEM("disabled"	GETITEM+29*
DITEM("editorType"	GETITEM+28*
DITEM("id"	GETITEM+26*
DITEM("label"	GETITEM+31*
DITEM("listControl"	GETITEM+40, GETITEM+41, GETITEM+42, GETITEM+44
DITEM("name"	GETITEM+27*
DITEM("required"	GETITEM+36*
DITEM("row"	GETITEM+33*
DITEM("rowSpan"	GETITEM+35*
DITEM("setDefaultValue"	GETITEM+37*
DSCHEMA	BLD+1~, BLD+2, BLD+22, BLD+23*, BLD+24
ERROR	SAVE+1~, SAVE+20
FDA	DIFFCONTROL~, DIFFCONTROL+4, DIFFEDITOR~, DIFFEDITOR+5, FDAEDITOR~, FDACONTROL~, SAVE+1~, SAVE+12, SAVE+13, SAVE+17 , SAVE+18, SAVE+19, SETNEWCONTROL~, SETNEWCONTROL+11, SETNEWEDITOR~, SETNEWEDITOR+9
FDA(	FDAEDITOR+2, FDAEDITOR+3, FDAEDITOR+4, FDAEDITOR+8, FDAEDITOR+9, FDAEDITOR+10, FDAEDITOR+11, FDAEDITOR+16, FDAEDITOR+21, FDAEDITOR+22 , FDAEDITOR+23, FDAEDITOR+24, FDACONTROL+1, FDACONTROL+2, FDACONTROL+3, FDACONTROL+4, FDACONTROL+5, FDACONTROL+6, FDACONTROL+7, FDACONTROL+8 , FDACONTROL+9, FDACONTROL+10, FDACONTROL+11*
HARRAY	BLD+1~, BLD+14, BLD+22, DIFFCONTROL~, DIFFEDITOR~, GETITEM~, GETITEM+16, GETITEM+22, GETITEM+38, GETITEM+45 , SAVE+1~, SAVE+3*, SAVE+5
HARRAY(	DIFFCONTROL+3, DIFFEDITOR+4
HARRAY("totalHash"	SAVE+4
IARRAY	DELETE~, DIFFCONTROL~, DIFFEDITOR~, SAVE+1~, SAVE+12, SAVE+13, SAVE+17, SAVE+18, SAVE+21, SETNEWCONTROL~ , SETNEWEDITOR~
IARRAY(	DELETE+4, DIFFCONTROL+2, DIFFEDITOR+2, SETNEWCONTROL+12, SETNEWEDITOR+10
IDX	BLD+1~, BLD+13, BLD+14, DIFFCONTROL~, DIFFCONTROL+2, GETITEM~, GETITEM+2, GETITEM+3, GETITEM+6, GETITEM+9 , GETITEM+10, GETITEM+13, GETITEM+16, GETITEM+22, GETITEM+24, GETITEM+25, GETITEM+30, GETITEM+38, GETITEM+39, GETITEM+43 , GETITEM+45, SAVE+1~, SAVE+7, SAVE+8*, SAVE+9, SETNEWCONTROL~, SETNEWCONTROL+2, SETNEWCONTROL+10
IEN	BLD+1~, BLD+5*, BLD+6
IENS	DIFFCONTROL+1~, DIFFCONTROL+2, DIFFCONTROL+3, DIFFCONTROL+4, DIFFEDITOR+1~, DIFFEDITOR+2, DIFFEDITOR+4, DIFFEDITOR+5, FDAEDITOR~, FDAEDITOR+2 , FDAEDITOR+3, FDAEDITOR+4, FDAEDITOR+6, FDAEDITOR+8, FDAEDITOR+9, FDAEDITOR+10, FDAEDITOR+11, FDAEDITOR+16, FDAEDITOR+21, FDAEDITOR+22 , FDAEDITOR+23, FDAEDITOR+24, FDACONTROL~, FDACONTROL+1, FDACONTROL+2, FDACONTROL+3, FDACONTROL+4, FDACONTROL+5, FDACONTROL+6, FDACONTROL+7 , FDACONTROL+8, FDACONTROL+9, FDACONTROL+10, FDACONTROL+11, SETNEWCONTROL+1~, SETNEWCONTROL+10, SETNEWCONTROL+11, SETNEWCONTROL+12, SETNEWEDITOR+1~, SETNEWEDITOR+8 , SETNEWEDITOR+9, SETNEWEDITOR+10
INPUTS	EDITOR~, EDITOR+1, EDITOR+2, BLD~, BLD+2, SAVE~
INPUTS("callFrom"	EDITOR+1, EDITOR+2
INPUTS("data"	SAVE+2
ISCOMBO	GETITEM+1~, GETITEM+25, GETITEM+28, GETITEM+38
ITEM	BLD+1~, BLD+14!, BLD+15, GETITEM~, GETITEM+16, GETITEM+22
ITEM("delphi"	GETITEM+19, GETITEM+20, GETITEM+21, GETITEM+38, GETITEM+46*
ITEM("description"	GETITEM+11*
ITEM("displayName"	GETITEM+4*
ITEM("document"	GETITEM+7*
ITEM("html"	GETITEM+15*
ITEM("id"	GETITEM+2*
ITEM("inactive"	GETITEM+5*
ITEM("name"	GETITEM+4*
ITEM("plugin"	GETITEM+7*
ITEM("recordType"	GETITEM+15, GETITEM+18
ITEM("refreshPanels"	GETITEM+5*
ITEM("siteSetNote"	GETITEM+7*
LIDX	SAVE+1~, SAVE+15*, SAVE+16
LOBJ	SAVE+1~, SAVE+16!*, SAVE+17, SAVE+18
LOBJ("id"	SAVE+17
NAME	BLD+1~, BLD+4, BLD+5, BLD+6, BLD+12, BLD+13
NODE	GETITEM+1~, GETITEM+6, GETITEM+7, GETITEM+9, GETITEM+10, GETITEM+11, GETITEM+13, GETITEM+14, GETITEM+15, GETITEM+25* , GETITEM+27, GETITEM+28, GETITEM+29, GETITEM+30, GETITEM+31, GETITEM+32, GETITEM+33, GETITEM+34, GETITEM+35, GETITEM+36 , GETITEM+37, GETITEM+39, GETITEM+40, GETITEM+41, GETITEM+42, GETITEM+43*, GETITEM+44
OBJ	DIFFCONTROL~, DIFFCONTROL+4, DIFFEDITOR~, DIFFEDITOR+3, DIFFEDITOR+5, FDAEDITOR~, FDACONTROL~, SAVE+1~, SAVE+9!*, SAVE+12 , SAVE+13, SETNEWCONTROL~, SETNEWCONTROL+11, SETNEWEDITOR~, SETNEWEDITOR+9
OBJ("column"	FDACONTROL+2
OBJ("columnSpan"	FDACONTROL+2
OBJ("delphi"	FDAEDITOR+21, FDAEDITOR+22, FDAEDITOR+23, FDAEDITOR+24, SAVE+14, SAVE+15, SAVE+16
OBJ("description"	FDAEDITOR+5, FDAEDITOR+6
OBJ("disabled"	FDACONTROL+5
OBJ("displayName"	FDAEDITOR+2, SAVE+11
OBJ("document"	FDAEDITOR+10
OBJ("editorType"	FDACONTROL+1
OBJ("html"	FDAEDITOR+16
OBJ("id"	DIFFCONTROL+2, DIFFEDITOR+2, SAVE+12, SAVE+13, SAVE+17, SAVE+18, SETNEWCONTROL+9, SETNEWCONTROL+10, SETNEWEDITOR+8
OBJ("inactive"	FDAEDITOR+3
OBJ("label"	FDACONTROL+4
OBJ("listControl"	FDACONTROL+8, FDACONTROL+9, FDACONTROL+10, FDACONTROL+11
OBJ("name"	FDAEDITOR+2, FDACONTROL+1, SAVE+10, SAVE+20, SETNEWCONTROL+4, SETNEWEDITOR+2
OBJ("plugin"	FDAEDITOR+9
OBJ("recordType"	FDAEDITOR+13, FDAEDITOR+18
OBJ("refreshPanels"	FDAEDITOR+4
OBJ("required"	FDACONTROL+6
OBJ("row"	FDACONTROL+3
OBJ("rowSpan"	FDACONTROL+3
OBJ("setDefaultValue"	FDACONTROL+7
OBJ("siteSetNote"	FDAEDITOR+11
ONEOF	BLD+1~, BLD+7, BLD+8, BLD+9, BLD+10
ONEOF("editorType"	BLD+6*, BLD+18
ONEOF("longList"	BLD+19
ONEOF("plugin"	BLD+17
ONEOF("schema"	BLD+20
ONEOF("uiSchema"	BLD+21
ORIMGR	SETNEWCONTROL+1~, SETNEWCONTROL+5, SETNEWEDITOR+1~, SETNEWEDITOR+4
PIDX	BLD+1~, BLD+2
RESULT	SAVE+1~, SAVE+6, SAVE+10, SAVE+11, SAVE+20, SAVE+22
SCHEMA	BLD+1~, BLD+2, BLD+24
SCHEMA("properties"	BLD+17, BLD+18, BLD+19, BLD+20, BLD+21*
SHARRAY	SAVE+1~, SAVE+5, SAVE+12, SAVE+18
SUB	BLD+1~, BLD+2, BLD+24
TEXT	FDAEDITOR+1~, FDAEDITOR+6!, FDAEDITOR+7
TIDX	GETITEM+1~, GETITEM+9, GETITEM+10, GETITEM+24, GETITEM+25, GETITEM+26, GETITEM+30, GETITEM+38, GETITEM+39, GETITEM+43 , GETITEM+45, GETITEM+46
TIENS	GETITEM+1~
TMP	FDAEDITOR+1~, FDAEDITOR+6!*
TMPSUB	DIFFEDITOR~, DIFFEDITOR+5, FDAEDITOR~, SAVE+1~, SAVE+12, SAVE+13, SETNEWEDITOR~, SETNEWEDITOR+9
TMPSUB(	FDAEDITOR+7*
TOBJ	DIFFEDITOR+1~, DIFFEDITOR+3*
TOBJ("delphi"	DIFFEDITOR+3!
TSCHEMA	BLD+1~, BLD+22, BLD+23
TSCHEMA("editors"	BLD+15*
TSUB	FDAEDITOR+1~, FDAEDITOR+6*, FDAEDITOR+7, FDAEDITOR+8
U	GETITEM+4, GETITEM+5, GETITEM+7, GETITEM+14, GETITEM+15, GETITEM+19, GETITEM+20, GETITEM+21, GETITEM+27, GETITEM+28 , GETITEM+29, GETITEM+31, GETITEM+32, GETITEM+33, GETITEM+34, GETITEM+35, GETITEM+36, GETITEM+37, GETITEM+40, GETITEM+41 , GETITEM+42, GETITEM+44, SAVE+10, SAVE+11, SAVE+20
UISCHEMA	BLD+1~, BLD+2, BLD+24
USER	BLD+1~, BLD+2
X	SETNEWCONTROL+1~, SETNEWCONTROL+4, SETNEWEDITOR+1~, SETNEWEDITOR+2
X0	GETITEM+1~, GETITEM+3*, GETITEM+4, GETITEM+5, GETITEM+19, GETITEM+20, GETITEM+21
Y	DELETE+1~, SETNEWCONTROL+1~, SETNEWCONTROL+8, SETNEWCONTROL+9, SETNEWEDITOR+1~, SETNEWEDITOR+7, SETNEWEDITOR+8
