Routine: PXCOMPACTAPI

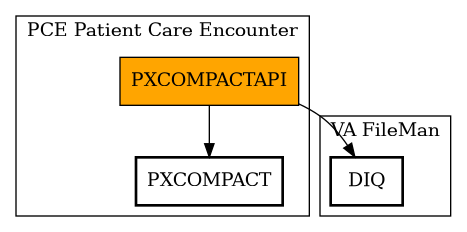

Package	Total	Call Graph
PCE Patient Care Encounter	1	$$GETEOC^PXCOMPACT
VA FileMan	1	$$GET1^DIQ

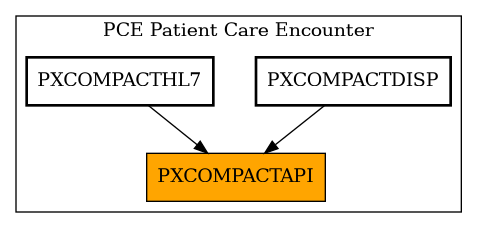

Package	Total	Caller Graph
PCE Patient Care Encounter	2	PXCOMPACTDISP PXCOMPACTHL7

Name	Comments	DBIA/ICR reference
BATCH(DFNARRAY,ARRAY)	; ; Input: DFNARARY array ; Output: ARRAY array ; ARRAY(DFN,"EPISODE",episodeSequence,"INFO")=Episode Start Date^Episode End Date^Administrative Eligibility^EOC OPEN/CLOSE Y/N ; ARRAY(DFN,"EPISODE",episodeSequence,"VISIT",visitSequence)="Visit^Treatment Related to Compact" ; ARRAY(DFN,"EPISODE",episodeSequence,"PTF",ptfSequence)="PTF^Treatment Related to Compact" ; accept an array of DFNs to get COMPACT status
EXTRACT(DFN,PXCOMPACT)	;

Name	Field # of Occurrence
$$GET1^DIQ	BATCH+14, BATCH+20, BATCH+21, BATCH+22, EXTRACT+35, EXTRACT+36, EXTRACT+59, EXTRACT+73
$$GETEOC^PXCOMPACT	BATCH+12, EXTRACT+7

FileNo	Call Tags
^PXCOMP(818 - [#818]	GET1^DIQ
818.01	GET1^DIQ
818.02	GET1^DIQ
818.03	GET1^DIQ

Global Variables Directly Accessed

Name	Line Occurrences (* Changed, ! Killed)
^AUPNVSIT - [#9000010]	BATCH+31
^DGPT - [#45]	BATCH+27
^DPT - [#2]	EXTRACT+9
^PXCOMP(818 - [#818]	BATCH+11, BATCH+13, BATCH+15, BATCH+18, BATCH+24, BATCH+26, BATCH+27, BATCH+28, BATCH+30, BATCH+31 , EXTRACT+4, EXTRACT+11, EXTRACT+12, EXTRACT+14, EXTRACT+18, EXTRACT+21, EXTRACT+22, EXTRACT+23, EXTRACT+24, EXTRACT+25 , EXTRACT+26, EXTRACT+27, EXTRACT+28, EXTRACT+30, EXTRACT+31, EXTRACT+32, EXTRACT+37, EXTRACT+38, EXTRACT+40, EXTRACT+41 , EXTRACT+43, EXTRACT+44, EXTRACT+45, EXTRACT+46, EXTRACT+48, EXTRACT+49, EXTRACT+50, EXTRACT+51, EXTRACT+53, EXTRACT+55 , EXTRACT+57, EXTRACT+58, EXTRACT+60, EXTRACT+61, EXTRACT+62, EXTRACT+63, EXTRACT+64, EXTRACT+65, EXTRACT+67, EXTRACT+69 , EXTRACT+71, EXTRACT+72, EXTRACT+74, EXTRACT+75, EXTRACT+76, EXTRACT+77, EXTRACT+78

Local Variables

Legend:

>>	Not killed explicitly
*	Changed
!	Killed
~	Newed

Name	Field # of Occurrence
ADMIN	BATCH+7~, BATCH+22*, BATCH+32
ARRAY	BATCH~
ARRAY(	BATCH+11, BATCH+27, BATCH+31, BATCH+32
ASC	BATCH+7~, BATCH+14*, BATCH+32
DFN	BATCH+7~, BATCH+8, BATCH+9, BATCH+11, BATCH+12, BATCH+13, BATCH+27, BATCH+31, BATCH+32, EXTRACT~ , EXTRACT+3, EXTRACT+4, EXTRACT+7, EXTRACT+8, EXTRACT+9
DFNARRAY	BATCH~
DFNARRAY(	BATCH+9
ENDDT	BATCH+7~, BATCH+21*, BATCH+32
PTF	BATCH+7~, BATCH+27*
PXCOMPACT	EXTRACT~, EXTRACT+6!
PXCOMPACT("BE	NEFIT TYPE" , EXTRACT+12*
PXCOMPACT("COMPACTMSG"	EXTRACT+3, EXTRACT+4
PXCOMPACT("EO	C OPEN/CLOSE FLAG" , EXTRACT+11*
PXCOMPACT("EP	ISODE OF CARE NUMBER" , EXTRACT+13*
PXCOMPACT("EPISODE"	EXTRACT+21, EXTRACT+22, EXTRACT+23, EXTRACT+24, EXTRACT+25, EXTRACT+26, EXTRACT+27, EXTRACT+28, EXTRACT+31, EXTRACT+32 , EXTRACT+35, EXTRACT+36, EXTRACT+41, EXTRACT+44, EXTRACT+49, EXTRACT+50, EXTRACT+57, EXTRACT+58, EXTRACT+59, EXTRACT+60 , EXTRACT+61, EXTRACT+62, EXTRACT+63, EXTRACT+64, EXTRACT+71, EXTRACT+72, EXTRACT+73, EXTRACT+74, EXTRACT+75, EXTRACT+76 , EXTRACT+77, EXTRACT+78
PXCOMPACT("NOEPISODES"	EXTRACT+10*
PXCOMPACT("PA	TIENT ID" , EXTRACT+8, TIENT NAME" , EXTRACT+9
PXEOCNUM	BATCH+7~, BATCH+12, BATCH+15, BATCH+18, BATCH+19, BATCH+23, BATCH+24, BATCH+26, BATCH+27, BATCH+28 , BATCH+30, BATCH+31, EXTRACT+1~, EXTRACT+2, EXTRACT+7*, EXTRACT+10, EXTRACT+11, EXTRACT+12, EXTRACT+13, EXTRACT+14 , EXTRACT+18, EXTRACT+21, EXTRACT+22, EXTRACT+23, EXTRACT+24, EXTRACT+25, EXTRACT+26, EXTRACT+27, EXTRACT+28, EXTRACT+30 , EXTRACT+31, EXTRACT+32, EXTRACT+34, EXTRACT+37, EXTRACT+38, EXTRACT+40, EXTRACT+41, EXTRACT+43, EXTRACT+44, EXTRACT+45 , EXTRACT+46, EXTRACT+48, EXTRACT+49, EXTRACT+50, EXTRACT+51, EXTRACT+53, EXTRACT+55, EXTRACT+56, EXTRACT+57, EXTRACT+58 , EXTRACT+60, EXTRACT+61, EXTRACT+62, EXTRACT+63, EXTRACT+64, EXTRACT+65, EXTRACT+67, EXTRACT+69, EXTRACT+70, EXTRACT+71 , EXTRACT+72, EXTRACT+74, EXTRACT+75, EXTRACT+76, EXTRACT+77, EXTRACT+78
PXEOCSEQ	EXTRACT+1~, EXTRACT+2, EXTRACT+17, EXTRACT+18*, EXTRACT+19, EXTRACT+21, EXTRACT+22, EXTRACT+23, EXTRACT+24, EXTRACT+25 , EXTRACT+26, EXTRACT+27, EXTRACT+28, EXTRACT+30, EXTRACT+31, EXTRACT+32, EXTRACT+34, EXTRACT+35, EXTRACT+36, EXTRACT+37 , EXTRACT+38, EXTRACT+40, EXTRACT+41, EXTRACT+43, EXTRACT+44, EXTRACT+45, EXTRACT+46, EXTRACT+48, EXTRACT+49, EXTRACT+50 , EXTRACT+51, EXTRACT+53, EXTRACT+55, EXTRACT+56, EXTRACT+57, EXTRACT+58, EXTRACT+59, EXTRACT+60, EXTRACT+61, EXTRACT+62 , EXTRACT+63, EXTRACT+64, EXTRACT+65, EXTRACT+67, EXTRACT+69, EXTRACT+70, EXTRACT+71, EXTRACT+72, EXTRACT+73, EXTRACT+74 , EXTRACT+75, EXTRACT+76, EXTRACT+77, EXTRACT+78
PXIEN	BATCH+7~, BATCH+13, BATCH+14, BATCH+17, BATCH+19, BATCH+20, BATCH+21, BATCH+22, BATCH+23
PXIENS	EXTRACT+1~, EXTRACT+15, EXTRACT+34, EXTRACT+35, EXTRACT+36, EXTRACT+56, EXTRACT+59, EXTRACT+70, EXTRACT+73
PXIPXSQ	EXTRACT+1~, EXTRACT+15, EXTRACT+54, EXTRACT+55, EXTRACT+56, EXTRACT+57, EXTRACT+58, EXTRACT+59, EXTRACT+60, EXTRACT+61 , EXTRACT+62, EXTRACT+63, EXTRACT+64
PXMOVSEQ	EXTRACT+1~, EXTRACT+42, EXTRACT+43, EXTRACT+44
PXNMEP	EXTRACT+1~, EXTRACT+15*
PXNUMIPX	EXTRACT+1~, EXTRACT+15, EXTRACT+53, EXTRACT+54
PXNUMOPX	EXTRACT+1~, EXTRACT+15, EXTRACT+67, EXTRACT+68
PXNUMPTF	EXTRACT+1~, EXTRACT+15, EXTRACT+38, EXTRACT+39
PXNUMVST	EXTRACT+1~, EXTRACT+15, EXTRACT+46, EXTRACT+47
PXOPXSQ	EXTRACT+1~, EXTRACT+15, EXTRACT+68, EXTRACT+69, EXTRACT+70, EXTRACT+71, EXTRACT+72, EXTRACT+73, EXTRACT+74, EXTRACT+75 , EXTRACT+76, EXTRACT+77, EXTRACT+78
PXPTFSQ	BATCH+7~, BATCH+25, BATCH+26, BATCH+27, EXTRACT+1~, EXTRACT+15, EXTRACT+39, EXTRACT+40, EXTRACT+41, EXTRACT+43 , EXTRACT+44
PXSEQ	BATCH+7~, BATCH+17, BATCH+18, BATCH+19, BATCH+23, BATCH+24, BATCH+26, BATCH+27, BATCH+28, BATCH+30 , BATCH+31, BATCH+32
PXVSTSQ	BATCH+7~, BATCH+29, BATCH+30, BATCH+31, EXTRACT+1~, EXTRACT+15, EXTRACT+47, EXTRACT+48, EXTRACT+49, EXTRACT+50
STARTDT	BATCH+7~, BATCH+20*, BATCH+32
VISIT	BATCH+7~, BATCH+31*
