XUREMAP ;VISS/CEP - Remote Application Registration ; 2-6-2025
Source file <XUREMAP.m>
| action | A | extended action | Ea | event driver | Ed | subscriber | Su | protocol | O | limited protocol | LP | run routine | RR | broker | B | edit | E | server | Se | P | screenman | SM | inquire | I |

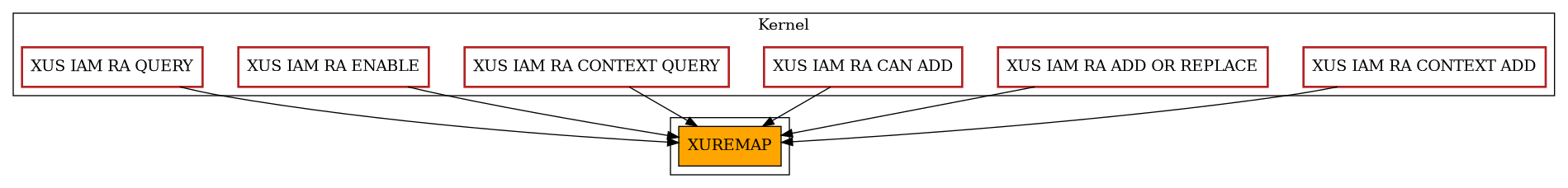

| Package | Total | Caller Graph |
|---|---|---|
| Kernel | 6 | XUS IAM RA ADD OR REPLACE XUS IAM RA CAN ADD XUS IAM RA CONTEXT ADD XUS IAM RA CONTEXT QUERY XUS IAM RA ENABLE XUS IAM RA QUERY |
| Name | Comments | DBIA/ICR reference |
|---|---|---|
| RAENABLE(XURET,XURANAME,XUENABLE) | ||
| ADDRA(XURET,XUARR) | ; RPC entry point for XUS IAM RA ADD OR REPLACE
; to add/update a Remote Application file (#8994) entry ; disable REMOTE APPLICATION Entry by passing null in ; Application Code Field |
|
| RAQ2(XURET,NAME,FLAGS) | ||
| CONTEXTQ(RETURN,NAME) | ||
| ADDEP(XURET,XUARR) | ; RPC to create new or update ENDPOINT entries
|
|
| CANADD(XURET,XURANAME,XUCANADD) | ; entry point for RPC is used exclusively by
; the Identity and Access Management (IAM) service to mark an entry in the ; remote application file (#8994.5) as either CAN ADD USERS=YES OR CAN ADD USERS=NO |
| Name | Field # of Occurrence |
|---|---|

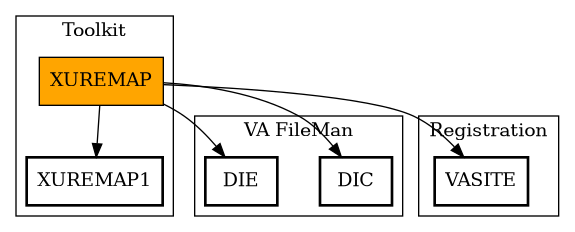

| $$FIND1^DIC | RAENABLE+21, ADDRA+47, ADDEP+37, CANADD+18 |
| LIST^DIC | RAQ2+52, RAQ2+68 |
| FILE^DIE | RAENABLE+34, CANADD+30 |
| $$SITE^VASITE | RAENABLE+23, RAENABLE+26, RAENABLE+36, RAENABLE+37, RAQ2+59, CANADD+20, CANADD+23, CANADD+32, CANADD+33 |
| $$GETFLNUM^XUREMAP1 | ADDRA+42, ADDEP+29 |
| ADDEP^XUREMAP1 | ADDEP+45, ADDEP+48 |
| ADDRA^XUREMAP1 | ADDRA+62, ADDRA+66 |
| CHKAEPIN^XUREMAP1 | ADDEP+34 |
| CONTEXT^XUREMAP1 | CONTEXTQ+27 |
| FAUXFL^XUREMAP1 | ADDRA+56, ADDEP+39 |
| FORMAT^XUREMAP1 | RAQ2+74 |
| GETCNTXT^XUREMAP1 | RAQ2+72, CONTEXTQ+24 |
| INSPLIT^XUREMAP1 | ADDRA+51 |
| REMOVE^XUREMAP1 | ADDRA+59, ADDEP+43 |
| RPC Name | Call Tags |
|---|---|
| XUS IAM RA ADD OR REPLACE | ADDRA |
| XUS IAM RA QUERY | RAQ2 |
| XUS IAM RA CONTEXT QUERY | CONTEXTQ |
| XUS IAM RA CONTEXT ADD | ADDEP |
| XUS IAM RA ENABLE | RAENABLE |
| XUS IAM RA CAN ADD | CANADD |
| FileNo | Call Tags |
|---|---|
| ^XWB(8994.5 - [#8994.5] | FIND1^DIC, LIST^DIC |
| 8994.51 | LIST^DIC |
| Name | Line Occurrences (* Changed, ! Killed) |
|---|---|
| ^DIC(19 - [#19] | ADDEP+42, ADDEP+46 |
| ^XWB(8994.5 - [#8994.5] | ADDRA+58, ADDRA+63 |
| >> | Not killed explicitly |
| * | Changed |
| ! | Killed |
| ~ | Newed |
| Name | Field # of Occurrence |
|---|---|
| COUNT | RAQ2+46~, RAQ2+63*, RAQ2+64*, RAQ2+65, RAQ2+72 |
| CTXTNAME | ADDEP+28~, ADDEP+31*, ADDEP+37, ADDEP+42 |
| EES | RAQ2+46~, RAQ2+58*, RAQ2+59 |
| ERR | ADDRA+40~, RAQ2+75!, ADDEP+28~ |
| FILE | ADDRA+40~, ADDRA+42*, ADDRA+43, ADDRA+44, ADDEP+28~, ADDEP+29*, ADDEP+30, ADDEP+31 |
| FILENO | ADDRA+40~, ADDRA+43*, ADDRA+45, ADDRA+47, ADDRA+58, ADDEP+28~, ADDEP+30*, ADDEP+32, ADDEP+37, ADDEP+42 , ADDEP+43 |
| FLAGS | RAQ2~, RAQ2+48*, RAQ2+50, RAQ2+72 |
| FOUND | ADDRA+40~, ADDRA+47*, ADDRA+53, ADDRA+58, ADDRA+62, ADDRA+63, RAQ2+46~, RAQ2+57*, RAQ2+58, RAQ2+59 , CONTEXTQ+20~, CONTEXTQ+24, CONTEXTQ+27, ADDEP+28~, ADDEP+37*, ADDEP+38, ADDEP+42, ADDEP+45, ADDEP+46 |
| FOUND(0 | CONTEXTQ+25 |
| IENS | RAENABLE+18~, RAENABLE+30*, RAENABLE+33, RAQ2+46~, RAQ2+66*, RAQ2+68, CANADD+15~, CANADD+27*, CANADD+29 |
| NAME | RAQ2~, RAQ2+44, RAQ2+50, RAQ2+52, CONTEXTQ~, CONTEXTQ+21, CONTEXTQ+23, CONTEXTQ+24 |
| OUT | RAQ2+46~, RAQ2+74, RAQ2+75! |
| OUT("DILIST" | RAQ2+57, RAQ2+64, RAQ2+65, RAQ2+72 |
| OUTCB | RAQ2+46~, RAQ2+67*, RAQ2+68, RAQ2+74, RAQ2+75! |
| OUTCTXT | RAQ2+72, RAQ2+74, RAQ2+75! |
| RAIEN | RAENABLE+18~, RAENABLE+21*, RAENABLE+22, RAENABLE+30, RAQ2+46~, RAQ2+65*, RAQ2+66, RAQ2+67, RAQ2+72, CANADD+15~ , CANADD+18*, CANADD+19, CANADD+27 |
| RANAME | ADDRA+40~, ADDRA+44*, ADDRA+47, ADDRA+58 |
| RETURN | CONTEXTQ~, CONTEXTQ+27 |
| RETURN(0 | CONTEXTQ+22*, CONTEXTQ+23*, CONTEXTQ+25* |
| SCREEN | RAQ2+46~, RAQ2+49*, RAQ2+50*, RAQ2+52 |
| TMPXURET | ADDRA+40~, ADDRA+59, ADDEP+28~, ADDEP+43 |
| U | RAENABLE+20, RAENABLE+23, RAENABLE+25, RAENABLE+26, RAENABLE+36, RAENABLE+37, ADDRA+44, RAQ2+45, RAQ2+59, CONTEXTQ+22 , ADDEP+31, CANADD+17, CANADD+20, CANADD+22, CANADD+23, CANADD+32, CANADD+33 |
| XUARR | ADDRA~, ADDRA+42, ADDRA+49, ADDEP~, ADDEP+29, ADDEP+34, ADDEP+39, ADDEP+45, ADDEP+48 |
| XUARRIN | ADDRA+40~, ADDRA+49*, ADDRA+51, ADDRA+56, ADDRA+62, ADDRA+66 |
| XUARRM | ADDRA+40~, ADDRA+51, ADDRA+56, ADDRA+62, ADDRA+66 |
| XUCANADD | CANADD~, CANADD+22, CANADD+28, CANADD+29 |
| XUENABLE | RAENABLE~, RAENABLE+25, RAENABLE+31, RAENABLE+32*, RAENABLE+33 |
| XUERR | RAENABLE+18~, RAQ2+46~, CANADD+15~ |
| XUERR("DIERR" | RAENABLE+35, RAENABLE+36, RAQ2+54, RAQ2+55, CANADD+31, CANADD+32 |
| XUFDA | RAENABLE+18~, CANADD+15~ |
| XUFDA( | RAENABLE+33*, CANADD+29* |
| XUNAME | ADDRA+40~, ADDRA+56, ADDRA+59, ADDEP+28~, ADDEP+39, ADDEP+43 |
| XURANAME | RAENABLE~, RAENABLE+19, RAENABLE+21, RAENABLE+23, RAENABLE+26, RAENABLE+36, RAENABLE+37, CANADD~, CANADD+16, CANADD+18 , CANADD+20, CANADD+23, CANADD+32, CANADD+33 |
| XURET | RAENABLE~, ADDRA~, ADDRA+56, ADDRA+62, ADDRA+66, RAQ2~, RAQ2+74, ADDEP~, ADDEP+34, ADDEP+39 , ADDEP+41!, ADDEP+45, ADDEP+48, CANADD~ |
| XURET(0 | RAENABLE+20*, RAENABLE+23*, RAENABLE+26*, RAENABLE+36*, RAENABLE+37*, ADDRA+41*, ADDRA+46*, ADDRA+57, ADDRA+58*, RAQ2+45* , RAQ2+55*, RAQ2+59*, ADDEP+33*, ADDEP+35, ADDEP+36*, ADDEP+40, ADDEP+41*, ADDEP+42*, CANADD+17*, CANADD+20* , CANADD+23*, CANADD+32*, CANADD+33* |
| XUSVRB | RAENABLE+18~, RAENABLE+31*, RAENABLE+36, RAENABLE+37, CANADD+15~, CANADD+28*, CANADD+32, CANADD+33 |
