PSOASAP2 ;BIRM/KML - American Society for Automation in Pharmacy (ASAP) Segments & Fields ;09/07/12
Source file <PSOASAP2.m>

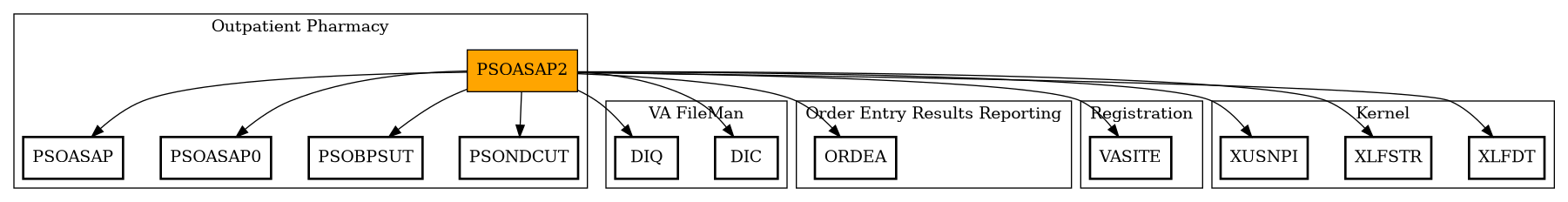

| Package | Total | Call Graph |
|---|---|---|
| Outpatient Pharmacy | 4 | ($$DSP04,$$DSP06,$$DSP09)^PSOASAP ($$NUMERIC,$$PAT22)^PSOASAP0 $$RXRLDT^PSOBPSUT $$GETNDC^PSONDCUT |
| Kernel | 3 | ($$FMTHL7,$$HL7TFM,$$HTFM)^XLFDT ($$LJ,$$RJ)^XLFSTR $$NPI^XUSNPI |
| VA FileMan | 2 | ($$FIND1,LIST)^DIC $$GET1^DIQ |
| Order Entry Results Reporting | 1 | ARCHIVE^ORDEA |
| Registration | 1 | $$SITE^VASITE |
| action | A | extended action | Ea | event driver | Ed | subscriber | Su | protocol | O | limited protocol | LP | run routine | RR | broker | B | edit | E | server | Se | P | screenman | SM | inquire | I |
| Name | Comments | DBIA/ICR reference |
|---|---|---|
| IS01() | ; Unique Information Source ID
|
|
| TH06() | ;ASAP 3.0 : Response ID (Not Used)
; ASAP 4.0+: Creation Time. Format: HHMMSS or HHMM ; ASAP 5.0+: Creation Time. Data element increased in length from 6 to 7 to accomodate ZULU time Format: HHMMSSZ |
|
| PAT16() | ;Patient ZIP Code
; US Zip Code ; if US then get VAPA(11), if ASAP version is 5 then get 2nd piece of VAPA(11) which is the US zip code with hyphens ; otherwise if ASAP version is a prior version then send zip code w/o hyphens (piece one) |
|
| PAT24() | ;
; ASAP 5.0: Patient Preferred or Alias Last Name (new in 5.0) |
|
| PAT25() | ;
; ASAP 5.0: Patient Preferred or Alias First Name (new in 5.0) |
|
| PAT26() | ;
; ASAP 5.0: Patient Race Category (new in 5.0) |
|
| PAT27() | ;
; ASAP 5.0: Patient Ethnicity (new in 5.0) |
|
| DSP08() | ;ASAP 3.0 : Unique System ID - Drug (Not Used)
; ASAP 4.0+:Product ID (NDC - National Drug Code) |
|
| DSP27() | ; ASAP 5.0: Time Filled (new with 5.0)
|
|
| DSP29() | ; ASAP 5.0: Total Quantity Remaining on Prescription (new with 5.0)
|
|
| DSP30() | ;ASAP 5.0: Total Quantity Remaining Drug Dosage Units Code (new in 5.0)
|
|
| DSP34() | ;ASAP 5.0: DEA Schedule/State Designation (new in 5.0)
|
|
| PRE11() | ;ASAP 5.0: Prescriber Address Information 1 (added in 5.0)
|
|
| PRE12() | ;ASAP 5.0: Prescriber Address Information 2 (added in 5.0)
|
|
| PRE13() | ;ASAP 5.0: Prescriber City Address (added in 5.0)
|
|
| PRE14() | ;ASAP 5.0: Prescriber State Address (added in 5.0)
|
|
| PRE15() | ;ASAP 5.0: Zip Code Address (added in 5.0)
|
|
| RACE | ; mapping of race and codes for PAT26
; race in VistA^code in ASAP specification |
|
| ETHNICITY | ; mapping of ethnicity and codes for PAT27
; ethnicity in VistA^code in ASAP specification |
|
| ORDERARCHIVE(X) | ; returns data from the ORDER DEA ARCHIVE INFO file (#101.52)
; Input - X = PLACER ORDER NUMBER (#52,39.3) ; Output - ^TMP($J,"ORDEA",ORIFN) ; - DEA # (101.52,10) |
|
| UTCTIM(FMDTM,TIMLEN) | ; UTC Time
; Input=FM Date/Time ; Output=UTC time only, with appended "Z" |
| Name | Field # of Occurrence |
|---|---|
| $$FIND1^DIC | PRE11+7, PRE12+7, PRE13+7, PRE14+7, PRE14+8, PRE15+7 |
| LIST^DIC | PAT24+5, PAT25+5 |
| $$GET1^DIQ | IS01+8, IS01+9, IS01+10, IS01+12, DSP08+5, DSP29+3, DSP30+3, DSP34+3, PRE11+3, PRE11+7 , PRE12+3, PRE12+7, PRE13+3, PRE13+7, PRE14+3, PRE14+7, PRE14+9, PRE15+3, PRE15+7 |
| ARCHIVE^ORDEA | ORDERARCHIVE+6 |
| $$DSP04^PSOASAP | DSP29+4 |
| $$DSP06^PSOASAP | DSP29+5 |
| $$DSP09^PSOASAP | DSP29+6 |
| $$NUMERIC^PSOASAP0 | DSP08+4, DSP08+5, DSP08+6 |
| $$PAT22^PSOASAP0 | PAT16+4 |
| $$RXRLDT^PSOBPSUT | DSP27+3 |
| $$GETNDC^PSONDCUT | DSP08+6 |
| $$SITE^VASITE | IS01+4 |
| $$FMTHL7^XLFDT | UTCTIM+7, UTCTIM+11 |
| $$HL7TFM^XLFDT | UTCTIM+9 |
| $$HTFM^XLFDT | TH06+3 |
| $$LJ^XLFSTR | UTCTIM+14 |
| $$RJ^XLFSTR | DSP08+7 |
| $$NPI^XUSNPI | IS01+11 |
| FileNo | Call Tags |
|---|---|
| 2.01 | LIST^DIC |
| ^DIC(4 - [#4] | GET1^DIQ |
| ^DIC(5 - [#5] | FIND1^DIC, GET1^DIQ |
| ^PSDRUG - [#50] | GET1^DIQ |
| ^PSRX - [#52] | GET1^DIQ |
| ^PS(59 - [#59] | GET1^DIQ |
| ^XTV(8991.9 - [#8991.9] | FIND1^DIC, GET1^DIQ |
| Name | Line Occurrences (* Changed, ! Killed) |
|---|---|
| ^PS(59 - [#59] | IS01+7 |
| ^TMP("DILIST" | PAT24+4!, PAT24+6, PAT24+7, PAT25+4!, PAT25+6, PAT25+7 |
| ^TMP($J | PRE11+8, PRE12+8, PRE13+8, PRE14+8, PRE15+8, ORDERARCHIVE+7 |
| Name | Line Occurrences |
|---|---|
| $$ORDERARCHIVE | PRE11+5, PRE12+5, PRE13+5, PRE14+5, PRE15+5 |
| $$UTCTIM | TH06+3, DSP27+4 |
| >> | Not killed explicitly |
| * | Changed |
| ! | Killed |
| ~ | Newed |
| Name | Field # of Occurrence |
|---|---|
| ADD1 | PRE11+2~, PRE11+7*, PRE11+8 |
| ADD2 | PRE12+2~, PRE12+7*, PRE12+8 |
| CITYADD | PRE13+2~, PRE13+7*, PRE13+8 |
| DA | IS01+3~, IS01+7*, IS01+8, IS01+9 |
| DEA | DSP34+2~, DSP34+3*, DSP34+4, ORDERARCHIVE+5~, ORDERARCHIVE+7*, ORDERARCHIVE+8 |
| DEANUM | PRE11+2~, PRE11+5*, PRE11+6, PRE11+7, PRE12+2~, PRE12+5*, PRE12+6, PRE12+7, PRE13+2~, PRE13+5* , PRE13+6, PRE13+7, PRE14+2~, PRE14+5*, PRE14+6, PRE14+7, PRE15+2~, PRE15+5*, PRE15+6, PRE15+7 |
| DESC | PAT26+3~, PAT26+5*, PAT26+7, PAT27+3~, PAT27+5*, PAT27+6 |
| >> DRUGIEN | DSP08+5, DSP30+3, DSP34+3 |
| DSP04 | DSP29+2~, DSP29+4*, DSP29+7 |
| DSP06 | DSP29+2~, DSP29+5*, DSP29+7 |
| DSP08 | DSP08+3~*, DSP08+4*, DSP08+5*, DSP08+6*, DSP08+7*, DSP08+8 |
| DSP09 | DSP29+2~, DSP29+6*, DSP29+7 |
| DT | IS01+11, DSP27+3 |
| >> FILLNUM | DSP08+6, DSP27+3 |
| FMDTM | UTCTIM~, UTCTIM+5, UTCTIM+7 |
| FMDTMU | UTCTIM+3~, UTCTIM+9*, UTCTIM+11 |
| FOUND | PAT26+3~, PAT26+4*, PAT26+5, PAT26+6*, PAT26+7*, PAT27+3~, PAT27+4*, PAT27+5, PAT27+6* |
| HLDATIM | UTCTIM+3~, UTCTIM+7*, UTCTIM+9, UTCTIM+11*, UTCTIM+13 |
| HLTIMU | UTCTIM+3~, UTCTIM+13*, UTCTIM+14*, UTCTIM+15 |
| I | DSP08+3~ |
| IS01 | IS01+3~, IS01+5*, IS01+8*, IS01+10*, IS01+12*, IS01+13 |
| LINE | PAT26+3~, PAT26+5*, PAT27+3~, PAT27+5* |
| NPINST | IS01+3~, IS01+9*, IS01+10, IS01+11 |
| NPINUM | IS01+3~, IS01+11*, IS01+12 |
| ORDNUM | PRE11+2~, PRE11+3*, PRE11+4, PRE11+5, PRE11+8, PRE12+2~, PRE12+3*, PRE12+4, PRE12+5, PRE12+8 , PRE13+2~, PRE13+3*, PRE13+4, PRE13+5, PRE13+8, PRE14+2~, PRE14+3*, PRE14+4, PRE14+5, PRE14+8 , PRE15+2~, PRE15+3*, PRE15+4, PRE15+5, PRE15+8 |
| PAT26 | PAT26+3~, PAT26+4*, PAT26+6*, PAT26+7*, PAT26+8 |
| PAT27 | PAT27+3~, PAT27+4*, PAT27+6*, PAT27+7 |
| >> PATIEN | PAT24+5, PAT25+5 |
| >> PSOASVER | IS01+6, TH06+3, PAT16+4, PAT24+2, PAT25+2, PAT26+2, PAT27+2, DSP08+2, DSP08+7, DSP27+1 , DSP29+1, DSP30+1, DSP34+1, PRE11+1, PRE12+1, PRE13+1, PRE14+1, PRE15+1 |
| >> RECTYPE | DSP08+4, DSP27+3 |
| >> RTSDATA("NDC" | DSP08+4 |
| >> RTSDATA("RELDTTM" | DSP27+3 |
| >> RXIEN | DSP08+6, DSP27+3, DSP29+3, PRE11+3, PRE12+3, PRE13+3, PRE14+3, PRE15+3 |
| SITE | IS01+3~, IS01+4*, IS01+5, IS01+7, IS01+8, IS01+10, IS01+12 |
| STATEIEN | PRE14+2~, PRE14+7*, PRE14+8*, PRE14+9 |
| TIMLEN | UTCTIM~, UTCTIM+4*, UTCTIM+14 |
| UNITS | DSP30+2~, DSP30+3*, DSP30+4 |
| UTCX | DSP27+2~, DSP27+4*, DSP27+5 |
| >> VADM(11 | PAT27+6 |
| >> VADM(12 | PAT26+6, PAT26+7 |
| >> VAPA(11 | PAT16+4 |
| >> VAPA(24 | PAT16+6 |
| X | PAT24+3~, PAT24+6*, PAT24+7, PAT25+3~, PAT25+6*, PAT25+7, DSP08+3~, DSP27+2~, DSP27+3*, DSP27+4 , ORDERARCHIVE~, ORDERARCHIVE+6, ORDERARCHIVE+7 |
| Y | DSP08+3~ |
| ZIPCODE | PRE15+2~, PRE15+7*, PRE15+8 |
| Name | Field # of Occurrence |
|---|---|
| $T(ETHNICITY+LINE | PAT27+5 |
| $T(RACE+LINE | PAT26+5 |
