PXRMEXUINFOPNL ;SLC/PJH,PKR - Reminder Exchange #4, cprs info panel. ;Jun 10, 2024@11:56:30
Source file <PXRMEXUINFOPNL.m>

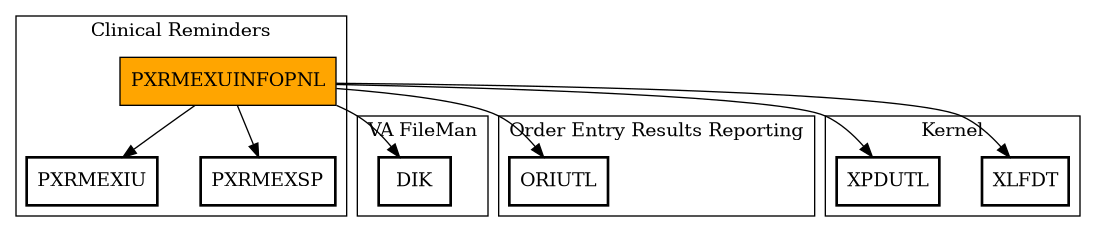

| Package | Total | Call Graph |
|---|---|---|
| Clinical Reminders | 2 | $$EXISTS^PXRMEXIU CRE^PXRMEXSP |
| Kernel | 2 | ($$FMTE,$$NOW)^XLFDT BMES^XPDUTL |
| Order Entry Results Reporting | 1 | ($$GETNATIONAL,KILLNATIONAL,SETUPDATING)^ORIUTL |
| VA FileMan | 1 | ^DIK |
| action | A | extended action | Ea | event driver | Ed | subscriber | Su | protocol | O | limited protocol | LP | run routine | RR | broker | B | edit | E | server | Se | P | screenman | SM | inquire | I |
| Name | Comments | DBIA/ICR reference |
|---|---|---|
| EN(FDA) | ;
|
|
| PROCESS(FDA,ALIST,ERRORS,FN) | ;
|
|
| UPDATENAT(FDA) | ;
|
| Name | Field # of Occurrence |
|---|---|
| ^DIK | UPDATENAT+16 |
| $$GETNATIONAL^ORIUTL | UPDATENAT+10 |
| KILLNATIONAL^ORIUTL | UPDATENAT+15 |
| SETUPDATING^ORIUTL | UPDATENAT+13 |
| $$EXISTS^PXRMEXIU | PROCESS+9 |
| CRE^PXRMEXSP | UPDATENAT+8 |
| $$FMTE^XLFDT | UPDATENAT+6 |
| $$NOW^XLFDT | UPDATENAT+6, UPDATENAT+11 |
| BMES^XPDUTL | EN+17, EN+19, UPDATENAT+3, UPDATENAT+7, UPDATENAT+9 |
| FileNo | Call Tags |
|---|---|
| ^ORI(101.71 - [#101.71] | Classic Fileman Calls |
| Name | Line Occurrences (* Changed, ! Killed) |
|---|---|
| ^PXD(811.8 - [#811.8] | UPDATENAT+2 |
| Name | Line Occurrences |
|---|---|
| PROCESS | EN+10, EN+12, EN+14 |
| UPDATENAT | EN+15 |
| >> | Not killed explicitly |
| * | Changed |
| ! | Killed |
| ~ | Newed |
| Name | Field # of Occurrence |
|---|---|
| ALIST | EN+1~, EN+10, EN+12, EN+14, PROCESS~ |
| ALIST( | EN+2*, EN+3*, EN+4*, EN+5*, EN+6*, PROCESS+5 |
| DA | UPDATENAT+1~, UPDATENAT+10* |
| DESCTXT | UPDATENAT+1~, UPDATENAT+8 |
| DESCTXT(1 | UPDATENAT+5* |
| DESCTXT(2 | UPDATENAT+6* |
| DIK | UPDATENAT+1~, UPDATENAT+16* |
| ECNT | PROCESS+1~, PROCESS+11* |
| ERRORS | EN+1~, EN+10, EN+12, EN+14, EN+15, PROCESS~ |
| ERRORS( | EN+18, EN+19, PROCESS+11* |
| ERRORS("" | PROCESS+11 |
| FDA | EN~, EN+10, EN+12, EN+14, EN+15, PROCESS~, UPDATENAT~ |
| FDA( | PROCESS+2, PROCESS+3, PROCESS+4, UPDATENAT+11*, UPDATENAT+12* |
| FILE | PROCESS+1~, PROCESS+5*, PROCESS+6*, PROCESS+7, PROCESS+9, PROCESS+11 |
| FLD | EN+1~, PROCESS+1~, PROCESS+3*, PROCESS+4, PROCESS+5 |
| FN | PROCESS~, PROCESS+2, PROCESS+3, PROCESS+4, PROCESS+5 |
| IDX | EN+1~, EN+18*, EN+19 |
| IEN | PROCESS+1~, PROCESS+9*, PROCESS+10 |
| IENS | PROCESS+1~, PROCESS+2*, PROCESS+3, PROCESS+4 |
| INPUTS | UPDATENAT+1~, UPDATENAT+8 |
| INPUTS( | UPDATENAT+4* |
| NAME | UPDATENAT+1~, UPDATENAT+2*, UPDATENAT+3, UPDATENAT+5, UPDATENAT+8, UPDATENAT+12 |
| >> PXRMDONE | EN+16*, UPDATENAT+3* |
| >> PXRMRIEN | UPDATENAT+2 |
| U | UPDATENAT+2 |
| VALUE | PROCESS+1~, PROCESS+4*, PROCESS+6, PROCESS+8*, PROCESS+9, PROCESS+11 |
