Routine: OREDITOR

Package: Order Entry Results Reporting

Routine: OREDITOR


Information

OREDITOR ; SLC/AGP - Information panel editor API ;Mar 12, 2025@09:17:36

Source Information

Source file <OREDITOR.m>

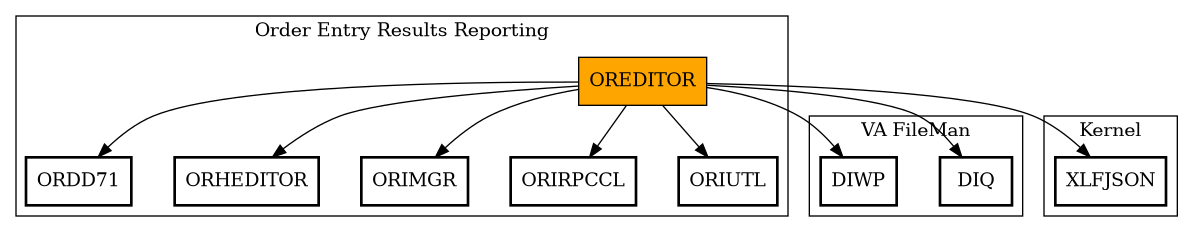

Call Graph

Call Graph

Call Graph Total: 8

Package Total Call Graph
Order Entry Results Reporting 5 $$GETCOMP^ORDD71  $$SAVEDATA^ORHEDITOR  SETTEXT^ORIMGR  ($$GETINFOARRAY,$$REQDATA)^ORIRPCCL  $$ONCLICKEXECODE^ORIUTL
VA FileMan 2 $$GET1^DIQ  ^DIWP
Kernel 1 (DECODE,ENCODE)^XLFJSON

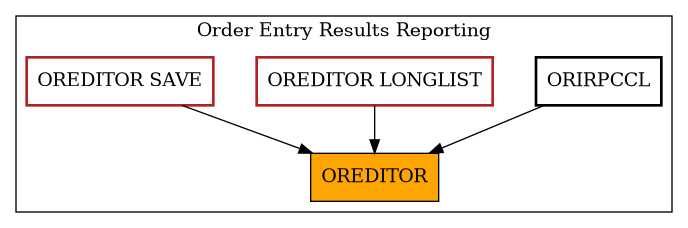

Caller Graph

Legends:

Legend of Colors

Package Component Superscript legend

action A extended action Ea event driver Ed subscriber Su protocol O limited protocol LP run routine RR broker B edit E server Se print P screenman SM inquire I

Caller Graph

Caller Graph Total: 3

Package Total Caller Graph
Order Entry Results Reporting 3 OREDITOR LONGLIST  OREDITOR SAVE  ORIRPCCL

Entry Points

Name Comments DBIA/ICR reference
INQEDITOR ;
ISCOMBO(IDX) ;
CELLDATA(DFN,USER,EID,SUB,IDS,DARRAY,ARRAY) ;
GETEDITOR(DFN,USER,IDS,PKG,EID,DARRAY,ARRAY) ;
LAYOUT(EID,SUB,ARRAY) ;
LONGLIST(RESULTS,IJSON) ;
LONGLISTX ;
SAVE(RESULTS,IJSON) ;
SAVEX ;
SETERROR(ARRAY,ERROR) ;
SETHEAD(EID,SUB) ;

External References

Name Field # of Occurrence
$$GET1^DIQ INQEDITOR+30
^DIWP INQEDITOR+10, INQEDITOR+35
$$GETCOMP^ORDD71 LAYOUT+5
$$SAVEDATA^ORHEDITOR SAVE+17
SETTEXT^ORIMGR INQEDITOR+6, INQEDITOR+8, INQEDITOR+26, INQEDITOR+31, INQEDITOR+33
$$GETINFOARRAY^ORIRPCCL LONGLIST+7, SAVE+11
$$REQDATA^ORIRPCCL SAVE+16
$$ONCLICKEXECODE^ORIUTL CELLDATA+4, LONGLIST+15
DECODE^XLFJSON LONGLIST+2, SAVE+5
ENCODE^XLFJSON LONGLISTX+2, SAVEX+2

Used in RPC

RPC Name Call Tags
OREDITOR SAVE SAVE
OREDITOR LONGLIST LONGLIST

Global Variables Directly Accessed

Name Line Occurrences  (* Changed,  ! Killed)
^ORE(101.74 - [#101.74] INQEDITOR+4, INQEDITOR+15, INQEDITOR+19, CELLDATA+2, LAYOUT+2, LAYOUT+3, LAYOUT+4, LAYOUT+18, LAYOUT+19, LAYOUT+24
, SETHEAD+2, SETHEAD+11, SETHEAD+12
^ORI(101.73 - [#101.73] ISCOMBO+2
^ORW(101.76 - [#101.76] INQEDITOR+5, INQEDITOR+7
^TMP( INQEDITOR+3!, INQEDITOR+4!, INQEDITOR+9, INQEDITOR+10, INQEDITOR+25*, INQEDITOR+34, INQEDITOR+35, INQEDITOR+36!, GETEDITOR+3!, GETEDITOR+8!
, GETEDITOR+9, LAYOUT+8*, LAYOUT+9*, LAYOUT+10*, LAYOUT+12*, LAYOUT+13*, LAYOUT+14*, LAYOUT+15*, LAYOUT+16*, LAYOUT+19*
, LAYOUT+21*, LAYOUT+22*, LAYOUT+23*, LAYOUT+24*, LONGLIST+4!, LONGLIST+5, LONGLIST+18, LONGLISTX+1!, LONGLISTX+2, SAVE+3!
, SAVE+4, SAVEX+1!, SAVEX+2, SETHEAD+3*, SETHEAD+4*, SETHEAD+5*, SETHEAD+6*, SETHEAD+8*, SETHEAD+10*, SETHEAD+12*

Label References

Name Line Occurrences
$$CELLDATA GETEDITOR+7
$$ISCOMBO INQEDITOR+27
$$LAYOUT GETEDITOR+6
LONGLISTX LONGLIST+6, LONGLIST+7, LONGLIST+8, LONGLIST+9, LONGLIST+10, LONGLIST+16
SAVEX SAVE+7, SAVE+8, SAVE+9, SAVE+11, SAVE+15, SAVE+16, SAVE+17
SETERROR CELLDATA+5, GETEDITOR+4, LAYOUT+6, LONGLIST+6, LONGLIST+8, LONGLIST+9, LONGLIST+10, LONGLIST+16, SAVE+7, SAVE+8
, SAVE+9, SAVE+13
SETHEAD GETEDITOR+5

Local Variables

Legend:

>> Not killed explicitly
* Changed
! Killed
~ Newed

Name Field # of Occurrence
ARRAY INQEDITOR+1~, CELLDATA~, CELLDATA+5, GETEDITOR~, GETEDITOR+4, GETEDITOR+6, GETEDITOR+7, LAYOUT~, LAYOUT+6, SAVE+1~
, SETERROR~
ARRAY( INQEDITOR+17, INQEDITOR+20, INQEDITOR+28
ARRAY("editor" GETEDITOR+9*
ARRAY("error" SETERROR+2*
ARRAY("success" SETERROR+1*
ARRAY(0 INQEDITOR+11*
ARRAY(10 INQEDITOR+12*
ARRAY(30 INQEDITOR+13*
ARRAY(40 INQEDITOR+14*
CIDX INQEDITOR+1~, INQEDITOR+15*, INQEDITOR+19
CNAME INQEDITOR+1~, INQEDITOR+16*, INQEDITOR+22*, INQEDITOR+23, INQEDITOR+32
CNT INQEDITOR+1~, INQEDITOR+2*, INQEDITOR+6, INQEDITOR+8, INQEDITOR+9*, INQEDITOR+10, INQEDITOR+25*, INQEDITOR+26, INQEDITOR+31, INQEDITOR+33
, INQEDITOR+34*, INQEDITOR+35, LAYOUT+1~, LAYOUT+2*, LAYOUT+7*, LAYOUT+8, LAYOUT+9, LAYOUT+10, LAYOUT+12, LAYOUT+13
, LAYOUT+14, LAYOUT+15, LAYOUT+16, LAYOUT+19, LAYOUT+21, LAYOUT+22, LAYOUT+23, LAYOUT+24
>> D0 INQEDITOR+4, INQEDITOR+15, INQEDITOR+19
DARRAY CELLDATA~, CELLDATA+3, GETEDITOR~, GETEDITOR+7
DATA SAVE+1~, SAVE+17
DATA( SAVE+14*
DFN CELLDATA~, CELLDATA+4, GETEDITOR~, GETEDITOR+7, LONGLIST+1~, LONGLIST+10*, LONGLIST+15, SAVE+1~, SAVE+6*, SAVE+7
, SAVE+17
DIWF INQEDITOR+1~, INQEDITOR+2*
DIWL INQEDITOR+1~, INQEDITOR+2*
EID CELLDATA~, CELLDATA+2, GETEDITOR~, GETEDITOR+4, GETEDITOR+5, GETEDITOR+6, GETEDITOR+7, LAYOUT~, LAYOUT+2, LAYOUT+3
, LAYOUT+4, LAYOUT+18, LAYOUT+19, LAYOUT+24, LONGLIST+1~, LONGLIST+8*, LONGLIST+11, SAVE+1~, SAVE+6*, SAVE+8
, SAVE+17, SETHEAD~, SETHEAD+2, SETHEAD+3, SETHEAD+11, SETHEAD+12
ERROR LONGLIST+1~, SETERROR~, SETERROR+2
FAIL LAYOUT+1~, LAYOUT+2*, LAYOUT+6*, LAYOUT+25, SAVE+1~, SAVE+12*, SAVE+13*, SAVE+15
GCNTRL LAYOUT+1~, LAYOUT+5*, LAYOUT+8
HEAD INQEDITOR+1~, INQEDITOR+23*, INQEDITOR+24*, INQEDITOR+26, INQEDITOR+32*, INQEDITOR+33
ID SAVE+1~, SAVE+13*, SAVE+14
IDS CELLDATA~, CELLDATA+4, GETEDITOR~, GETEDITOR+7, LONGLIST+1~, LONGLIST+6*, LONGLIST+7, LONGLIST+15, SAVE+1~, SAVE+6*
, SAVE+9, SAVE+11, SAVE+17
IDX INQEDITOR+1~, INQEDITOR+17*, INQEDITOR+18, INQEDITOR+19, INQEDITOR+20, INQEDITOR+21, INQEDITOR+27, INQEDITOR+28, ISCOMBO~, ISCOMBO+2
, LAYOUT+1~, LAYOUT+2*, LAYOUT+3, LAYOUT+4, LAYOUT+18, LAYOUT+19, LAYOUT+24, SAVE+1~, SAVE+12*, SAVE+13
, SAVE+14
IJSON LONGLIST~, SAVE~
INFOARRAY LONGLIST+1~, LONGLIST+7, SAVE+1~, SAVE+11, SAVE+16
INFOARRAY(30 LONGLIST+8
INPUTS LONGLIST+1~, LONGLIST+15, SAVE+1~, SAVE+16
INPUTS("connectionUser" SAVE+6
INPUTS("direction" LONGLIST+12*
INPUTS("editor" SAVE+6, SAVE+12, SAVE+13, SAVE+14
INPUTS("editorId" LONGLIST+11*
INPUTS("id" SAVE+6
INPUTS("longListParameter" LONGLIST+13*
INPUTS("patientId" SAVE+6
INPUTS("startFrom" LONGLIST+12*
ISCOMBO INQEDITOR+1~, INQEDITOR+16*, INQEDITOR+18, INQEDITOR+27*
MPFIEN CELLDATA+1~, CELLDATA+2*, CELLDATA+4, LONGLIST+1~, LONGLIST+9*, LONGLIST+15
NAME INQEDITOR+1~, INQEDITOR+28*, INQEDITOR+31, ISCOMBO+1~, ISCOMBO+2*, ISCOMBO+3, ISCOMBO+4, ISCOMBO+5, ISCOMBO+6
NODE INQEDITOR+1~, INQEDITOR+4*, INQEDITOR+5, INQEDITOR+7, INQEDITOR+19*, INQEDITOR+22, INQEDITOR+27, INQEDITOR+29, INQEDITOR+30, LAYOUT+1~
, LAYOUT+6, SETHEAD+1~, SETHEAD+2*, SETHEAD+3, SETHEAD+4, SETHEAD+5, SETHEAD+6, SETHEAD+7, SETHEAD+9
NUM LAYOUT+1~, LAYOUT+18*, LAYOUT+19, SETHEAD+1~, SETHEAD+11*, SETHEAD+12
PIDX SAVE+1~
PIECE INQEDITOR+1~, INQEDITOR+20*, INQEDITOR+21, INQEDITOR+27, INQEDITOR+28, INQEDITOR+29, INQEDITOR+30
PKG GETEDITOR~
REQDATA CELLDATA+1~, CELLDATA+4, SAVE+1~, SAVE+16, SAVE+17
REQDATA("data" CELLDATA+3*
RESULTS LONGLIST~, LONGLIST+5*, SAVE~, SAVE+4*
RET CELLDATA+1~, CELLDATA+4*, CELLDATA+5, LONGLIST+1~, LONGLIST+15*, LONGLIST+16
SRCDATA SAVE+1~, SAVE+17
SUB INQEDITOR+1~, INQEDITOR+2*, INQEDITOR+3, INQEDITOR+4, INQEDITOR+6, INQEDITOR+8, INQEDITOR+9, INQEDITOR+10, INQEDITOR+25, INQEDITOR+26
, INQEDITOR+31, INQEDITOR+33, INQEDITOR+34, INQEDITOR+35, INQEDITOR+36, CELLDATA~, CELLDATA+4, GETEDITOR+1~, GETEDITOR+2*, GETEDITOR+3
, GETEDITOR+5, GETEDITOR+6, GETEDITOR+7, GETEDITOR+8, GETEDITOR+9, LAYOUT~, LAYOUT+8, LAYOUT+9, LAYOUT+10, LAYOUT+12
, LAYOUT+13, LAYOUT+14, LAYOUT+15, LAYOUT+16, LAYOUT+19, LAYOUT+21, LAYOUT+22, LAYOUT+23, LAYOUT+24, LONGLIST+1~
, LONGLIST+3*, LONGLIST+4, LONGLIST+5, LONGLIST+15, LONGLIST+18, LONGLISTX+1, LONGLISTX+2, SAVE+1~, SAVE+2*, SAVE+3
, SAVE+4, SAVE+17, SAVEX+1, SAVEX+2, SETHEAD~, SETHEAD+3, SETHEAD+4, SETHEAD+5, SETHEAD+6, SETHEAD+8
, SETHEAD+10, SETHEAD+12
TARRAY LONGLIST+1~, LONGLIST+6, LONGLIST+7, LONGLIST+8, LONGLIST+9, LONGLIST+10, LONGLIST+16, LONGLIST+18*, SAVE+1~, SAVE+7
, SAVE+8, SAVE+9, SAVE+11, SAVE+13, SAVE+16, SAVE+17
TARRAY("success" LONGLIST+17*, SAVE+18*
TEMPARR LONGLIST+1~
TEMPARR("direction" LONGLIST+12
TEMPARR("id" LONGLIST+6
TEMPARR("longListId" LONGLIST+9
TEMPARR("longListParameter" LONGLIST+13
TEMPARR("patientId" LONGLIST+10
TEMPARR("startFrom" LONGLIST+12
TMP INQEDITOR+1~, INQEDITOR+5*, INQEDITOR+6, INQEDITOR+7*, INQEDITOR+8, INQEDITOR+24*, INQEDITOR+28*, INQEDITOR+29, INQEDITOR+30, INQEDITOR+32*
U INQEDITOR+4, INQEDITOR+5, INQEDITOR+7, INQEDITOR+22, INQEDITOR+27, INQEDITOR+28, INQEDITOR+29, INQEDITOR+30, ISCOMBO+2, CELLDATA+2
, CELLDATA+5, LAYOUT+5, LAYOUT+6, LAYOUT+8, LAYOUT+9, LAYOUT+10, LAYOUT+12, LAYOUT+13, LAYOUT+14, LAYOUT+15
, LAYOUT+16, LAYOUT+21, LAYOUT+22, LAYOUT+23, LAYOUT+24, LONGLIST+8, LONGLIST+16, SETHEAD+3, SETHEAD+4, SETHEAD+5
, SETHEAD+6, SETHEAD+7, SETHEAD+9
USER CELLDATA~, CELLDATA+4, GETEDITOR~, GETEDITOR+7, SAVE+1~, SAVE+6*, SAVE+17
VALUE INQEDITOR+1~, INQEDITOR+29*, INQEDITOR+30*, INQEDITOR+31, SETHEAD+1~, SETHEAD+7*, SETHEAD+8, SETHEAD+9*, SETHEAD+10
VALUES SAVE+1~
X INQEDITOR+1~, INQEDITOR+10*, INQEDITOR+24*, INQEDITOR+32*, INQEDITOR+35*
X0 LAYOUT+1~, LAYOUT+3*, LAYOUT+5, LAYOUT+8, LAYOUT+9, LAYOUT+10
X10 LAYOUT+1~, LAYOUT+4*, LAYOUT+12, LAYOUT+13, LAYOUT+14, LAYOUT+15, LAYOUT+16
X30 LAYOUT+1~, LAYOUT+4*, LAYOUT+21, LAYOUT+22, LAYOUT+23
