Routine: ORHEDITOR

Package: Order Entry Results Reporting

Routine: ORHEDITOR


Information

ORHEDITOR ; SLC/AGP - HTML Dialog Routine ;Apr 16, 2025@07:53:38

Source Information

Source file <ORHEDITOR.m>

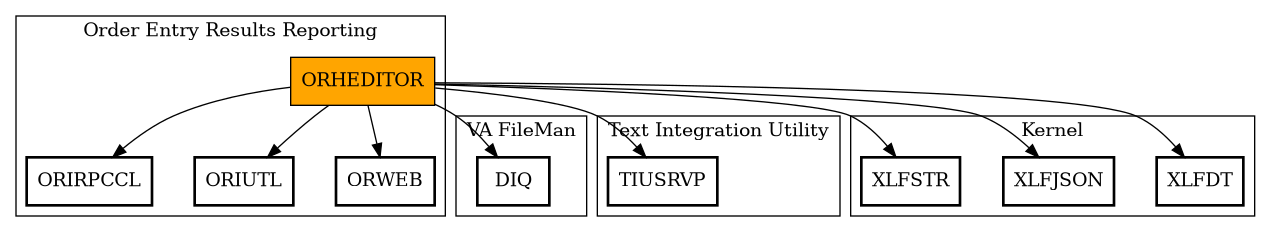

Call Graph

Call Graph

Call Graph Total: 8

Package Total Call Graph
Kernel 3 ($$FMTE,$$NOW)^XLFDT  (DECODE,ENCODE)^XLFJSON  $$TITLE^XLFSTR
Order Entry Results Reporting 3 $$GETINFOARRAY^ORIRPCCL  $$ONCLICKEXECODE^ORIUTL  GETWEBCONTENTID^ORWEB
Text Integration Utility 1 MAKE^TIUSRVP
VA FileMan 1 $$GET1^DIQ

Caller Graph

Legends:

Legend of Colors

Package Component Superscript legend

action A extended action Ea event driver Ed subscriber Su protocol O limited protocol LP run routine RR broker B edit E server Se print P screenman SM inquire I

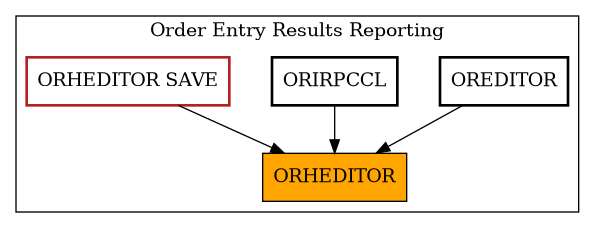

Caller Graph

Caller Graph Total: 3

Package Total Caller Graph
Order Entry Results Reporting 3 OREDITOR  ORHEDITOR SAVE  ORIRPCCL

Entry Points

Name Comments DBIA/ICR reference
BLDADDVALUES(DATA,SRCDATA,SCHEMA,DSCHEMA) ;
GETEDITOR(DFN,USER,IDS,PKG,EID,DARRAY,RESULTS) ;
GETSCHEMA(SID,RESULT) ;
GETSCHEMAS(EID,SCHEMA,UISCHEMA) ;
SAVE(RESULTS,IJSON) ;
SAVEX ;
SAVEDATA(DFN,USER,EID,PIDX,SUB,DATA,REQDATA,SRCDATA,TARRAY) ;
SETERROR(ARRAY,ERROR) ;
MAKENOTE(SUB,DFN,NOTEINFO,TARRAY) ;
NOTEINFO(NOTEINFO,REQDATA,TARRAY,TITLE) ;

External References

Name Field # of Occurrence
$$GET1^DIQ NOTEINFO+8
$$GETINFOARRAY^ORIRPCCL SAVE+16
$$ONCLICKEXECODE^ORIUTL GETEDITOR+16, SAVEDATA+12
GETWEBCONTENTID^ORWEB GETSCHEMA+4
MAKE^TIUSRVP MAKENOTE+11
$$FMTE^XLFDT MAKENOTE+15
$$NOW^XLFDT MAKENOTE+2, MAKENOTE+8
DECODE^XLFJSON GETSCHEMA+7, SAVE+5
ENCODE^XLFJSON SAVEX+2
$$TITLE^XLFSTR MAKENOTE+15

Used in RPC

RPC Name Call Tags
ORHEDITOR SAVE SAVE

FileMan Files Accessed Via FileMan Db Call

FileNo Call Tags
^TIU(8925.1 - [#8925.1] GET1^DIQ

Global Variables Directly Accessed

Name Line Occurrences  (* Changed,  ! Killed)
^ORE(101.74 - [#101.74] GETEDITOR+10, GETSCHEMAS+2, SAVEDATA+2, SAVEDATA+5
^ORW(101.76 - [#101.76] GETSCHEMA+3
^SC - [#44] MAKENOTE+15
^TIU(8925.1 - [#8925.1] NOTEINFO+2
^TMP( GETEDITOR+3!, GETEDITOR+17, GETEDITOR+19, GETEDITOR+23, GETEDITOR+24!, SAVE+3!, SAVE+4, SAVEX+1!, SAVEX+2, SAVEDATA+14
, SAVEDATA+16, MAKENOTE+9, MAKENOTE+10
^VA(200 - [#200] MAKENOTE+15

Label References

Name Line Occurrences
$$GETSCHEMA GETSCHEMAS+4, GETSCHEMAS+6
$$GETSCHEMAS GETEDITOR+8
$$MAKENOTE SAVEDATA+17
$$NOTEINFO SAVEDATA+4
$$SAVEDATA SAVE+20
BLDADDVALUES GETEDITOR+9
SAVEX SAVE+12, SAVE+13, SAVE+14, SAVE+15, SAVE+16, SAVE+20
SETERROR GETEDITOR+7, GETEDITOR+8, GETEDITOR+17, SAVE+12, SAVE+13, SAVE+14, SAVE+15, SAVEDATA+13, MAKENOTE+12, NOTEINFO+3
, NOTEINFO+7, NOTEINFO+8, NOTEINFO+9, NOTEINFO+10, NOTEINFO+11, NOTEINFO+12, NOTEINFO+15, NOTEINFO+17

Local Variables

Legend:

>> Not killed explicitly
* Changed
! Killed
~ Newed

Name Field # of Occurrence
ADDVALUES SAVE+1~, SAVE+7*, SAVE+20
ARRAY GETSCHEMA+1~, GETSCHEMA+4, SETERROR~
ARRAY("contents" GETSCHEMA+6
ARRAY("error" SETERROR+2*
ARRAY("success" GETSCHEMA+5, SETERROR+1*
CACHESUB GETEDITOR+1~, GETEDITOR+2*, GETEDITOR+16
CHANGE MAKENOTE+1~
CNT GETEDITOR+1~, GETEDITOR+18*, GETEDITOR+20*, GETEDITOR+21, GETEDITOR+22, GETEDITOR+23, MAKENOTE+1~, MAKENOTE+9*, MAKENOTE+10
DARRAY GETEDITOR~, GETEDITOR+9, GETEDITOR+14
DATA BLDADDVALUES~, GETEDITOR+1~, SAVE+1~, SAVE+20, SAVEDATA~, SAVEDATA+7
DATA( BLDADDVALUES+4, BLDADDVALUES+6, BLDADDVALUES+7, SAVE+9*
DATETIME MAKENOTE+1~, MAKENOTE+2*, MAKENOTE+16
DFN GETEDITOR~, GETEDITOR+4, GETEDITOR+16, SAVE+1~, SAVE+11*, SAVE+12, SAVE+20, SAVEDATA~, SAVEDATA+12, SAVEDATA+17
, MAKENOTE~, MAKENOTE+11
DITEM BLDADDVALUES+1~
DNAME BLDADDVALUES+1~, BLDADDVALUES+6*, BLDADDVALUES+7, BLDADDVALUES+8, BLDADDVALUES+9, BLDADDVALUES+10*, BLDADDVALUES+11, BLDADDVALUES+12, BLDADDVALUES+13
DSCHEMA BLDADDVALUES~, GETEDITOR+1~, GETEDITOR+9, GETEDITOR+11
DSCHEMA("vistaRequiredValues" BLDADDVALUES+9*
DSCHEMA("vistaSourceData" BLDADDVALUES+13*
DTYPE BLDADDVALUES+1~, BLDADDVALUES+4*, BLDADDVALUES+5, BLDADDVALUES+6, BLDADDVALUES+7, BLDADDVALUES+8, BLDADDVALUES+9
DVALUE BLDADDVALUES+1~, BLDADDVALUES+7*, BLDADDVALUES+9, BLDADDVALUES+11*, BLDADDVALUES+13
EID GETEDITOR~, GETEDITOR+6, GETEDITOR+7, GETEDITOR+8, GETEDITOR+10, GETSCHEMAS~, GETSCHEMAS+2, SAVE+1~, SAVE+11*, SAVE+13
, SAVE+20, SAVEDATA~, SAVEDATA+2, SAVEDATA+5
ERROR GETSCHEMA+1~, GETSCHEMA+8, SETERROR~, SETERROR+2, MAKENOTE+12, NOTEINFO+1~, NOTEINFO+6*, NOTEINFO+7, NOTEINFO+8, NOTEINFO+9
, NOTEINFO+10, NOTEINFO+11, NOTEINFO+12, NOTEINFO+15, NOTEINFO+17
IDS GETEDITOR~, GETEDITOR+4, GETEDITOR+16, SAVE+1~, SAVE+11*, SAVE+14, SAVE+16, SAVE+20
IJSON SAVE~
INCOMPLETE NOTEINFO+1~, NOTEINFO+16*, NOTEINFO+17
INFOARRAY SAVE+1~, SAVE+16
INPUT GETSCHEMA+1~, GETSCHEMA+4
INPUT("id" GETSCHEMA+2*
INPUTS SAVE+1~
INPUTS( SAVE+6, SAVE+7, SAVE+8, SAVE+9
LCNT MAKENOTE+1~, MAKENOTE+9*, MAKENOTE+10*
MPFIEN GETEDITOR+1~, GETEDITOR+10*, GETEDITOR+16, SAVEDATA+1~, SAVEDATA+3*, SAVEDATA+12
NAME GETSCHEMA+1~, GETSCHEMA+3*, GETSCHEMA+5, GETSCHEMA+6, GETSCHEMA+8
NOASF MAKENOTE+1~, MAKENOTE+3*, MAKENOTE+11
NODE GETSCHEMAS+1~, GETSCHEMAS+2*, GETSCHEMAS+3, GETSCHEMAS+5, SAVEDATA+1~, SAVEDATA+2*, SAVEDATA+3, SAVEDATA+4, NOTEINFO+1~, NOTEINFO+2*
, NOTEINFO+3, NOTEINFO+5, NOTEINFO+7
NOTEINFO SAVEDATA+1~, SAVEDATA+4, SAVEDATA+11, SAVEDATA+17, MAKENOTE~, NOTEINFO~
NOTEINFO("location" MAKENOTE+11, MAKENOTE+15, NOTEINFO+10*, NOTEINFO+16
NOTEINFO("title" MAKENOTE+11, NOTEINFO+4*
NOTEINFO("titleName" MAKENOTE+13, MAKENOTE+15, NOTEINFO+5*
NOTEINFO("user" MAKENOTE+5, MAKENOTE+6, MAKENOTE+15, NOTEINFO+9*
NOTEINFO("visitDateTime" MAKENOTE+4, MAKENOTE+11, MAKENOTE+15, NOTEINFO+12*
NOTEINFO("visitId" MAKENOTE+11, NOTEINFO+13*, NOTEINFO+14
NOTEINFO("visitServiceCategory" NOTEINFO+11*
NOTEINFO("visitString" MAKENOTE+11, NOTEINFO+13*, NOTEINFO+15, NOTEINFO+16
ORNOTE MAKENOTE+1~, MAKENOTE+11, MAKENOTE+12, MAKENOTE+14
PIDX SAVEDATA~, SAVEDATA+12
PKG GETEDITOR~, GETEDITOR+5
REFRESH SAVEDATA+1~, SAVEDATA+5*, SAVEDATA+15
REQDATA GETEDITOR+1~, GETEDITOR+16, SAVEDATA~, SAVEDATA+4, SAVEDATA+8, NOTEINFO~
REQDATA("data" GETEDITOR+11*
REQDATA("dataUserInformation" NOTEINFO+9
REQDATA("dataVisitInformation" NOTEINFO+10, NOTEINFO+11, NOTEINFO+12, NOTEINFO+13
REQDATA("requiredInputs" GETEDITOR+14*
REQDATA("schema" GETEDITOR+12*
REQDATA("sourceInputs" GETEDITOR+15*
REQDATA("uiSchema" GETEDITOR+13*
RESULT GETSCHEMA~
RESULTS GETEDITOR~, GETEDITOR+7, GETEDITOR+8, GETEDITOR+17, SAVE~, SAVE+4*
RESULTS("contents" GETEDITOR+21*, GETEDITOR+22*, GETEDITOR+23*
RET GETEDITOR+1~, GETEDITOR+16*, SAVEDATA+1~, SAVEDATA+12*, SAVEDATA+13
ROUTINE SAVEDATA+1~
RTN SAVEDATA+1~
SAVEDATA SAVEDATA+1~, SAVEDATA+12
SAVEDATA("createNote" SAVEDATA+10*, SAVEDATA+17
SAVEDATA("data" SAVEDATA+7*
SAVEDATA("noteCreationData" SAVEDATA+11*
SAVEDATA("noteTitleId" SAVEDATA+6*
SAVEDATA("requiredInputs" SAVEDATA+8*
SAVEDATA("sourceInputs" SAVEDATA+9*
SCHEMA BLDADDVALUES~, GETEDITOR+1~, GETEDITOR+8, GETEDITOR+9, GETEDITOR+12, GETSCHEMAS~, GETSCHEMAS+4
SCHEMA("vistaRequiredValues" BLDADDVALUES+2!, BLDADDVALUES+5*, BLDADDVALUES+8*, BLDADDVALUES+14, BLDADDVALUES+15*, BLDADDVALUES+16*, BLDADDVALUES+17*
SCHEMA("vistaSourceData" BLDADDVALUES+3!, BLDADDVALUES+12*, BLDADDVALUES+18, BLDADDVALUES+19*, BLDADDVALUES+20*, BLDADDVALUES+21*
SID GETSCHEMA~, GETSCHEMA+2, GETSCHEMA+3, GETSCHEMAS+1~, GETSCHEMAS+3*, GETSCHEMAS+4, GETSCHEMAS+5*, GETSCHEMAS+6
SRCDATA BLDADDVALUES~, GETEDITOR+1~, GETEDITOR+9, GETEDITOR+15, SAVE+1~, SAVE+8*, SAVE+20, SAVEDATA~, SAVEDATA+9
SRCDATA( BLDADDVALUES+10, BLDADDVALUES+11
SRCDATA("connectedUser" GETEDITOR+5*, SAVE+11
SRCDATA("editorId" GETEDITOR+6*, SAVE+11
SRCDATA("id" GETEDITOR+4*, SAVE+11
SRCDATA("package" GETEDITOR+5*
SRCDATA("patient" GETEDITOR+4*, SAVE+11
SUB GETEDITOR+1~, GETEDITOR+2*, GETEDITOR+3, GETEDITOR+16, GETEDITOR+17, GETEDITOR+19, GETEDITOR+23, GETEDITOR+24, SAVE+1~, SAVE+6*
, SAVE+7, SAVE+8, SAVE+9, SAVEDATA~, SAVEDATA+12, SAVEDATA+14, SAVEDATA+16, SAVEDATA+17, MAKENOTE~, MAKENOTE+9
, MAKENOTE+10
SUBSCRIPT SAVE+1~, SAVE+2*, SAVE+3, SAVE+4, SAVE+20, SAVEX+1, SAVEX+2
SUPPRESS MAKENOTE+1~
TAG SAVEDATA+1~
TARRAY SAVE+1~, SAVE+12, SAVE+13, SAVE+14, SAVE+15, SAVE+16, SAVE+20, SAVEDATA~, SAVEDATA+4, SAVEDATA+13
, SAVEDATA+17, MAKENOTE~, MAKENOTE+12, NOTEINFO~, NOTEINFO+3, NOTEINFO+7, NOTEINFO+8, NOTEINFO+9, NOTEINFO+10, NOTEINFO+11
, NOTEINFO+12, NOTEINFO+15, NOTEINFO+17
TARRAY("noteInformation" SAVEDATA+16*, MAKENOTE+13*, MAKENOTE+14*, MAKENOTE+15*, MAKENOTE+16*
TARRAY("refreshAllInfoPanels" SAVEDATA+15*
TARRAY("resultData" SAVEDATA+14*
TARRAY("success" SAVE+21*
TEMP SAVEDATA+1~
TITLE SAVEDATA+1~, SAVEDATA+4*, SAVEDATA+6, SAVEDATA+10, SAVEDATA+17, NOTEINFO~, NOTEINFO+2, NOTEINFO+4, NOTEINFO+8
TIUX MAKENOTE+1~, MAKENOTE+11
TIUX("TEXT" MAKENOTE+10*
TIUX(1201 MAKENOTE+4*
TIUX(1202 MAKENOTE+5*
TIUX(1204 MAKENOTE+6*
TIUX(1301 MAKENOTE+8*
TMP GETEDITOR+1~, GETEDITOR+8*, GETSCHEMA+1~, GETSCHEMA+6*, GETSCHEMAS+1~, GETSCHEMAS+4*, GETSCHEMAS+6!*
TYPE GETEDITOR+1~, GETEDITOR+18*, GETEDITOR+19, GETEDITOR+21, GETEDITOR+22, GETEDITOR+23
U GETEDITOR+8, GETEDITOR+10, GETSCHEMA+3, GETSCHEMAS+3, GETSCHEMAS+5, SAVEDATA+3, SAVEDATA+4, SAVEDATA+5, SAVEDATA+13, MAKENOTE+12
, MAKENOTE+14, MAKENOTE+15, NOTEINFO+3, NOTEINFO+5, NOTEINFO+7
UISCHEMA GETEDITOR+1~, GETEDITOR+8, GETEDITOR+13, GETSCHEMAS~, GETSCHEMAS+6
USER GETEDITOR~, GETEDITOR+5, GETEDITOR+16, SAVE+1~, SAVE+11*, SAVE+15, SAVE+20, SAVEDATA~, SAVEDATA+12
VSIT MAKENOTE+1~
