Routine: PSS262PO

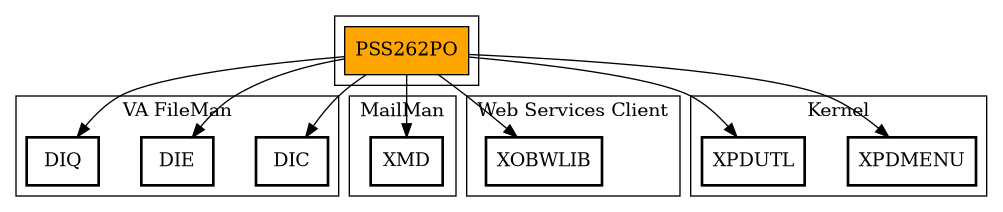

Package	Total	Call Graph
VA FileMan	3	$$FIND1^DIC (,UPDATE)^DIE $$GET1^DIQ
Kernel	2	($$ADD,$$DELETE,$$LKOPT)^XPDMENU BMES^XPDUTL
MailMan	1	^XMD
Web Services Client	1	REGREST^XOBWLIB

Entry Points

Name	Comments	DBIA/ICR reference
EN	; main
HDRWS	; add the HDR web service, the HDR web server, and register
SVR	;Update server
WEBSERVICE(PSSFLD01,PSSFLD200,PSSFLD201)	; add the new HDR web service to WEB SERVICE file (18.02) ; input: ; PSSFLD01 - name of the web service ; PSSFLD200 - CONTEXT ROOT of the web service ; PSSFLD201 - AVAILABILITY RESOURCE of the web service ; output: ; returns the ien of the newly created entry or if not created, then 0 is returned to indicate an error in registering
WEBSERVER(PSSFLD01,PSSFLD03,PSSFLD04,PSSFLD301,PSSFLD302,PSSFLD303)	; add the HDR web server to the WEB SERVER (#18.12) file
ENABLEWS(SERVERIEN,TEXT)	; enable the web service
TESTWS(WSDA,SERVICE,LINE)	; -- test web services availability
APSP	; add intervention type entries to file 9009032.3
MENUS	; Restructure menus
MENUSA	; Restructure menus
URL	; Add PGx URL to Pharmacy System File
ADDIT(PSSTYPE)	; Add the new intervention type
APSPTXT	; the 2 new intervention types added to the APSP INTERVENTION file
MAIL(XMSUB)	;Send mail message
REPORT(TEXT,ACTION,LINE)	; report activity during installation including error conditions ; Input - ; TEXT - text to report to end-user ; ACTION - what processing occurred ; LINE - line number for the mail message passed in by reference
1
2
3
4

External References

Name	Field # of Occurrence
$$FIND1^DIC	WEBSERVICE+7, WEBSERVICE+10, WEBSERVER+2, APSP+4, APSP+7, MENUS+6
^DIE	SVR+2
UPDATE^DIE	WEBSERVER+13, ENABLEWS+7, ADDIT+3
$$GET1^DIQ	SVR+3
^XMD	MAIL+6
REGREST^XOBWLIB	WEBSERVICE+9
$$ADD^XPDMENU	MENUS+12, MENUSA+3
$$DELETE^XPDMENU	MENUS+7
$$LKOPT^XPDMENU	MENUS+4
BMES^XPDUTL	HDRWS+2, WEBSERVICE+7, WEBSERVER+2, TESTWS+1, TESTWS+12, TESTWS+13, APSP+2, APSP+4, APSP+5, APSP+8 , MENUS+3, MENUS+8, MENUS+13, MENUSA+4, 1, 2, 2+1, 2+2, 3, 4

FileMan Files Accessed Via FileMan Db Call

FileNo	Call Tags
^XOB(18.02 - [#18.02]	FIND1^DIC
^XOB(18.12 - [#18.12]	FIND1^DIC, GET1^DIQ
19.01	FIND1^DIC
^APSPQA(32.3 - [#9009032.3]	FIND1^DIC

Global Variables Directly Accessed

Name	Line Occurrences (* Changed, ! Killed)
^PS(59.7 - [#59.7]	URL+1, URL+2*
^TMP("PSS262PO"	EN+3!, TESTWS+12, TESTWS+13, 1+2, 1+4, 1+6, 2+4, 2+6, 2+8, 3+2* , 3+4, 3+6, 4+2, 4+4, 4+6*

Label References

Name	Line Occurrences
$$ENABLEWS	HDRWS+8
$$TESTWS	HDRWS+9
$$WEBSERVER	HDRWS+5
$$WEBSERVICE	HDRWS+3
1	REPORT+5
2	REPORT+6
3	REPORT+7
4	REPORT+8, REPORT+9
ADDIT	APSP+6
APSP	EN+5
HDRWS	EN+4
MAIL	EN+11
MENUS	EN+6
MENUSA	EN+7
REPORT	EN+9, EN+10, HDRWS+4, HDRWS+6, HDRWS+8, HDRWS+9, SVR+3, APSP+7, MENUS+5, MENUS+9 , MENUS+14, MENUSA+5, URL+1
SVR	HDRWS+7
URL	EN+8

Local Variables

Legend:

>>	Not killed explicitly
*	Changed
!	Killed
~	Newed

Name	Field # of Occurrence
ACTION	REPORT~, REPORT+5, REPORT+6, REPORT+7, REPORT+8, REPORT+9
AVAIL	TESTWS+2~, TESTWS+3, TESTWS+12, TESTWS+13*, TESTWS+14
DA	SVR+1~, SVR+2*
DIE	SVR+1~, SVR+2*
DIFROM	MAIL+6~
DR	SVR+1~, SVR+2*
DTOUT	SVR+1~
DUZ	MAIL+5
ERROR	TESTWS+2~, TESTWS+3, TESTWS+11, TESTWS+14
FDA	WEBSERVER+3~, ENABLEWS+4~
FDA(	WEBSERVER+4, WEBSERVER+5, WEBSERVER+6, WEBSERVER+7, WEBSERVER+8, WEBSERVER+9, WEBSERVER+10, WEBSERVER+11, WEBSERVER+12, ENABLEWS+5 , ENABLEWS+6*
HDRERROR	EN+1~, EN+2, EN+9, EN+10, HDRWS+4, HDRWS+6, HDRWS+8
IENROOT	WEBSERVER+3~, ENABLEWS+4~
IENROOT(1	WEBSERVER+15, ENABLEWS+8*, ENABLEWS+9
LINE	TESTWS~, TESTWS+10, TESTWS+12, TESTWS+13, REPORT~, 1+1, 1+2, 1+3, 1+4, 1+5 , 1+6, 2+3, 2+4, 2+5, 2+6, 2+7, 2+8, 3+1, 3+2, 3+3* , 3+4, 3+5, 3+6, 4+1, 4+2, 4+3, 4+4, 4+5, 4+6
PSSDOTS	TESTWS+2~, TESTWS+6*, TESTWS+7
PSSERR	WEBSERVER+3~, WEBSERVER+14, ENABLEWS+4~, ENABLEWS+8, ADDIT+1~
PSSFDA	ADDIT+1~
PSSFDA(	ADDIT+2*
PSSFLD01	WEBSERVICE~, WEBSERVICE+7, WEBSERVICE+9, WEBSERVICE+10, WEBSERVER~, WEBSERVER+2, WEBSERVER+4
PSSFLD03	WEBSERVER~, WEBSERVER+5
PSSFLD04	WEBSERVER~, WEBSERVER+6
PSSFLD200	WEBSERVICE~, WEBSERVICE+9
PSSFLD201	WEBSERVICE~, WEBSERVICE+9
PSSFLD301	WEBSERVER~, WEBSERVER+10
PSSFLD302	WEBSERVER~, WEBSERVER+11
PSSFLD303	WEBSERVER~, WEBSERVER+12
PSSI	TESTWS+2~, TESTWS+9*
PSSLN	EN+1~, EN+2*, EN+9, EN+10, HDRWS+4, HDRWS+6, HDRWS+8, HDRWS+9, SVR+3, APSP+7 , MENUS+5, MENUS+9, MENUS+14, MENUSA+5, URL+1
PSSMENA	MENUSA+1~, MENUSA+2*, MENUSA+3, MENUSA+4, MENUSA+5
PSSMENB	MENUSA+1~, MENUSA+3*, MENUSA+4
PSSMENU	MENUS+1~, MENUS+4*, MENUS+6
PSSMENUA	MENUS+1~, MENUS+10*, MENUS+12, MENUS+13, MENUS+14
PSSMENUC	MENUS+1~, MENUS+10, MENUS+11, MENUS+12
PSSMENUQ	MENUS+1~, MENUS+2*
PSSMENUR	MENUS+1~, MENUS+7, MENUS+8, MENUS+12, MENUS+13
PSSSERVX	HDRWS+1~, HDRWS+7, WEBSERVER+2
PSSSRVR	TESTWS+2~, TESTWS+5*
PSSTYPE	APSP+1~, APSP+3*, APSP+4, APSP+5, APSP+6, APSP+7, APSP+8, ADDIT~, ADDIT+2
PSSX	TESTWS+2~, TESTWS+7*, TESTWS+8
PSSXX	TESTWS+2~, TESTWS+9*, TESTWS+11, TESTWS+12, TESTWS+13
RESULTS	TESTWS+2~, TESTWS+4, TESTWS+14, TESTWS+15
SERVERIEN	WEBSERVER+1~, WEBSERVER+2, WEBSERVER+14, WEBSERVER+15*, WEBSERVER+16, ENABLEWS~, ENABLEWS+5, ENABLEWS+6
SERVICE	TESTWS~, TESTWS+1
TEXT	ENABLEWS~, ENABLEWS+5, REPORT~, 1, 1+2, 2+1, 2+6, 3, 3+4, 4 , 4+2
WEBSERVERIEN	HDRWS+1~, HDRWS+5*, HDRWS+6, HDRWS+8, HDRWS+9, SVR+2, SVR+3
WEBSERVICEIEN	HDRWS+1~, HDRWS+3*, HDRWS+4
WSDA	TESTWS~, TESTWS+5
X	SVR+1~, APSP+1~, APSP+3*, MAIL+1~
XMDUN	MAIL+1~
XMDUZ	MAIL+1~, MAIL+2*
XMMG	MAIL+1~
XMROU	MAIL+1~
XMSTRIP	MAIL+1~
XMSUB	EN+1~, EN+9, EN+10, EN+11, MAIL~
XMTEXT	MAIL+1~, MAIL+3*
XMY	MAIL+1~
XMY(	MAIL+5*
XMY("G.PSS OR	DER CHECKS" , MAIL+4*
XMYBLOB	MAIL+1~
XMZ	MAIL+1~
Y	SVR+1~

Marked Items

Name	Field # of Occurrence
$T(APSPTXT+X	APSP+3
