Routine: SDES2CRTWALKIN2

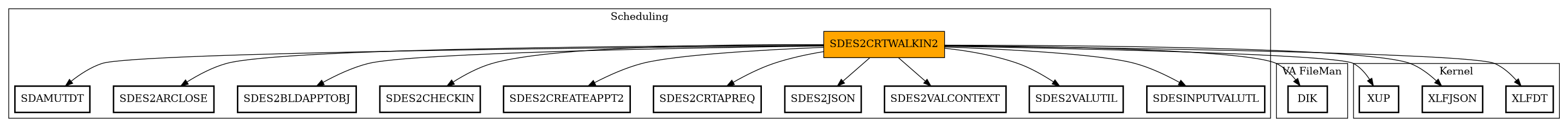

Package	Total	Call Graph
Scheduling	10	$$FMTISO^SDAMUTDT DISPOSITION^SDES2ARCLOSE BUILDAPPTOBJ^SDES2BLDAPPTOBJ CHECKIN^SDES2CHECKIN CREATE^SDES2CREATEAPPT2 CREATEREQUEST^SDES2CRTAPREQ BUILDJSON^SDES2JSON VALCONTEXT^SDES2VALCONTEXT VALFIELD^SDES2VALUTIL $$GETRES^SDESINPUTVALUTL
Kernel	3	($$FMTE,$$NOW)^XLFDT DECODE^XLFJSON DUZ^XUP
VA FileMan	1	^DIK

Name	Comments	DBIA/ICR reference
CREATEWALKIN(JSONRETURN,SDCONTEXT,PARAMS)	;
SETEMPTYOBJECT(RETURNERROR)	;set the return object into null if an error occur
DISPOSITIONREQ(DISPRESULT,SDCONTEXT,REQRESULT,REQUEST)	;
BUILDERROR(RESULT,JSONRETURN)	;
BLDREQARRAY(REQARRAY,PARAMS)	;build the array to call SDES2 CREATE APPT REQ
BLDAPPTARRAY(APPTARRAY,PARAMS)	;Build the appointment array to call SDES2 CREATE APPOINTMENT

Name	Field # of Occurrence
^DIK	CREATEWALKIN+31
$$FMTISO^SDAMUTDT	CREATEWALKIN+37, BLDREQARRAY+3
DISPOSITION^SDES2ARCLOSE	DISPOSITIONREQ+6
BUILDAPPTOBJ^SDES2BLDAPPTOBJ	CREATEWALKIN+39
CHECKIN^SDES2CHECKIN	CREATEWALKIN+38
CREATE^SDES2CREATEAPPT2	CREATEWALKIN+28
CREATEREQUEST^SDES2CRTAPREQ	CREATEWALKIN+20
BUILDJSON^SDES2JSON	CREATEWALKIN+41, BUILDERROR+4
VALCONTEXT^SDES2VALCONTEXT	CREATEWALKIN+9
VALFIELD^SDES2VALUTIL	CREATEWALKIN+16
$$GETRES^SDESINPUTVALUTL	CREATEWALKIN+15
$$FMTE^XLFDT	DISPOSITIONREQ+5
$$NOW^XLFDT	CREATEWALKIN+37, DISPOSITIONREQ+5
DECODE^XLFJSON	CREATEWALKIN+21, CREATEWALKIN+29
DUZ^XUP	CREATEWALKIN+11

RPC Name	Call Tags
SDES2 CREATE WALKIN APPT2	CREATEWALKIN

FileNo	Call Tags
^SDEC(409.85 - [#409.85]	Classic Fileman Calls

Name	Line Occurrences
BLDAPPTARRAY	CREATEWALKIN+26
BLDREQARRAY	CREATEWALKIN+19
BUILDERROR	CREATEWALKIN+10, CREATEWALKIN+17, CREATEWALKIN+24, CREATEWALKIN+32
DISPOSITIONREQ	CREATEWALKIN+34
SETEMPTYOBJECT	BUILDERROR+3

Local Variables

Legend:

>>	Not killed explicitly
*	Changed
!	Killed
~	Newed

Name	Field # of Occurrence
%	CREATEWALKIN+2~
APPOINTMENT	CREATEWALKIN+2~, CREATEWALKIN+40*, CREATEWALKIN+41
APPTARRAY	CREATEWALKIN+2~, CREATEWALKIN+26, CREATEWALKIN+28, BLDAPPTARRAY~
APPTARRAY("AP	POINTMENT LENGTH" , BLDAPPTARRAY+14, POINTMENT REASON" , BLDAPPTARRAY+17, POINTMENT TYPE NAME" , BLDAPPTARRAY+12*
APPTARRAY("CL	INIC IEN" , BLDAPPTARRAY+10*
APPTARRAY("COLLATERAL"	BLDAPPTARRAY+24*
APPTARRAY("DFN"	BLDAPPTARRAY+3*
APPTARRAY("EK	G DATE TIME" , BLDAPPTARRAY+22*
APPTARRAY("EN	D DATE TIME" , BLDAPPTARRAY+2*
APPTARRAY("EX	TERNAL ID" , BLDAPPTARRAY+7*
APPTARRAY("FOLLOWUP"	BLDAPPTARRAY+27*
APPTARRAY("LA	B DATE TIME" , BLDAPPTARRAY+20*
APPTARRAY("NE	XT AVAILABLE APPOINTMENT" , BLDAPPTARRAY+26*
APPTARRAY("NOTE"	BLDAPPTARRAY+11*
APPTARRAY("OVERBOOK"	BLDAPPTARRAY+19*
APPTARRAY("PA	TIENT ELIGIBILITY" , BLDAPPTARRAY+18, TIENT INDICATED DATE" , BLDAPPTARRAY+6, TIENT STATUS" , BLDAPPTARRAY+13*
APPTARRAY("PR	OVIDER IEN" , BLDAPPTARRAY+9*
APPTARRAY("PURPOSE"	BLDAPPTARRAY+23*
APPTARRAY("RE	QUEST TYPE" , BLDAPPTARRAY+8, SOURCE IEN" , BLDAPPTARRAY+4
APPTARRAY("SC	HEDULE REQUEST TYPE" , BLDAPPTARRAY+25*
APPTARRAY("SE	RVICE CONNECTED PERCENTAGE" , BLDAPPTARRAY+16, RVICE CONNECTED" , BLDAPPTARRAY+15
APPTARRAY("ST	ART DATE TIME" , BLDAPPTARRAY+1*
APPTARRAY("WALKIN"	BLDAPPTARRAY+5*
APPTARRAY("XR	AY DATE TIME" , BLDAPPTARRAY+21*
APPTIEN	CREATEWALKIN+2~
APPTRESULT	CREATEWALKIN+2~, CREATEWALKIN+32, CREATEWALKIN+40
APPTRESULT("Appointment"	CREATEWALKIN+36, CREATEWALKIN+39
APPTRESULT("Error"	CREATEWALKIN+30
APPTRESULTS	CREATEWALKIN+4~, CREATEWALKIN+39
APPTRETURN	CREATEWALKIN+3~, CREATEWALKIN+28
C	CREATEWALKIN+4~
CHECKIN	CREATEWALKIN+3~, CREATEWALKIN+38
CHECKIN(1	CREATEWALKIN+39
DA	CREATEWALKIN+3~, CREATEWALKIN+31*
DGMT	CREATEWALKIN+4~
DGNOCOPF	CREATEWALKIN+4~
DIK	CREATEWALKIN+3~, CREATEWALKIN+31*
DISPARAMS	DISPOSITIONREQ+1~, DISPOSITIONREQ+6
DISPARAMS("DISP"	DISPOSITIONREQ+4*
DISPARAMS("DISPDT"	DISPOSITIONREQ+5*
DISPARAMS("PCMT"	DISPOSITIONREQ+3*
DISPARAMS("RE	QUEST ID" , DISPOSITIONREQ+2*
DISPRESULT	CREATEWALKIN+2~, CREATEWALKIN+34, DISPOSITIONREQ~, DISPOSITIONREQ+6
DSIHCL	CREATEWALKIN+4~
DSIHFS	CREATEWALKIN+2~
DSPV150	CREATEWALKIN+4~
DT	BLDREQARRAY+3
DUZ	CREATEWALKIN+11~, CREATEWALKIN+12
EVN	CREATEWALKIN+4~
FDA	BLDREQARRAY+1~
FDAERR	BLDREQARRAY+1~
HL16	CREATEWALKIN+4~
HL7STRG	CREATEWALKIN+4~
HLA	CREATEWALKIN+4~
HLECH	CREATEWALKIN+4~
HLFS	CREATEWALKIN+4~
HLQ	CREATEWALKIN+4~
IEN	CREATEWALKIN+2~
IVMZ10F	CREATEWALKIN+5~
J	CREATEWALKIN+5~
JSONRETURN	CREATEWALKIN~, CREATEWALKIN+10, CREATEWALKIN+17, CREATEWALKIN+24, CREATEWALKIN+32, CREATEWALKIN+41, BUILDERROR~, BUILDERROR+4
NOD	CREATEWALKIN+3~
PARAMS	CREATEWALKIN~, CREATEWALKIN+19, CREATEWALKIN+26, BLDREQARRAY~, BLDAPPTARRAY~
PARAMS("ACHER	ON AUDIT ID" , CREATEWALKIN+13*, BLDREQARRAY+20
PARAMS("APPOI	NTMENT TYPE NAME" , CREATEWALKIN+16, BLDREQARRAY+17, BLDAPPTARRAY+12
PARAMS("APPT	END" , BLDAPPTARRAY+2, LENGTH" , BLDAPPTARRAY+14, START" , BLDAPPTARRAY+1
PARAMS("CLINI	C IEN" , CREATEWALKIN+15, BLDREQARRAY+6, BLDAPPTARRAY+10
PARAMS("DFN"	BLDREQARRAY+2, BLDAPPTARRAY+3
PARAMS("INSTI	TUTION NAME" , BLDREQARRAY+5
PARAMS("MODALITY"	BLDREQARRAY+16
PARAMS("ORIG	USER" , CREATEWALKIN+12*, BLDREQARRAY+25
PARAMS("OVERBOOK"	BLDAPPTARRAY+19
PARAMS("PATIE	NT INDICATED DATE" , BLDREQARRAY+9, BLDAPPTARRAY+6, NT STATUS" , BLDREQARRAY+18, BLDAPPTARRAY+13
PARAMS("PRIOR	ITY GROUP" , BLDREQARRAY+11
PARAMS("RESOU	RCE IEN" , CREATEWALKIN+15*, BLDAPPTARRAY+4
PARAMS("SDCOLLATERAL"	BLDAPPTARRAY+24
PARAMS("SDNOTE"	BLDAPPTARRAY+11, BLDAPPTARRAY+17
PARAMS("SDPATELIG"	BLDAPPTARRAY+18
PARAMS("SDSERVCONN"	BLDREQARRAY+12, BLDAPPTARRAY+15
PARAMS("SDSERVCONNPERC"	BLDREQARRAY+13, BLDAPPTARRAY+16
PARAMS("SECON	DARY STOP CODE" , BLDREQARRAY+15
PARAMS("STATI	ON NUMBER" , BLDREQARRAY+4
PARAMS("STOP	CODE" , BLDREQARRAY+14
PARAMS("VAOS	GUID" , BLDREQARRAY+19
PIVOT	CREATEWALKIN+5~
R	CREATEWALKIN+5~
REF	CREATEWALKIN+5~
REQARRAY	CREATEWALKIN+2~, CREATEWALKIN+19, CREATEWALKIN+20, BLDREQARRAY~
REQARRAY("APP	OINTMENT TYPE" , BLDREQARRAY+17*
REQARRAY("CLI	NIC IEN" , BLDREQARRAY+6*
REQARRAY("CPR	S ORDER NUMBER" , BLDREQARRAY+24, S TIME SENSITIVE" , BLDREQARRAY+23
REQARRAY("CRE	ATE DATE" , BLDREQARRAY+3*
REQARRAY("DFN"	BLDREQARRAY+2*
REQARRAY("EAS"	BLDREQARRAY+20*
REQARRAY("INS	TITUTION NAME" , BLDREQARRAY+5*
REQARRAY("MODALITY"	BLDREQARRAY+16*
REQARRAY("MRTC"	BLDREQARRAY+22*
REQARRAY("ORI	G USER" , BLDREQARRAY+25*
REQARRAY("PAT	IENT INDICATED DATE" , BLDREQARRAY+9, IENT STATUS" , BLDREQARRAY+18
REQARRAY("PRI	ORITY GROUP" , BLDREQARRAY+11*
REQARRAY("PRIORITY"	BLDREQARRAY+10*
REQARRAY("REQ	UEST COMMENT" , BLDREQARRAY+21, UEST SUB TYPE" , BLDREQARRAY+7, UESTED BY" , BLDREQARRAY+8*
REQARRAY("SEC	ONDARY STOP CODE" , BLDREQARRAY+15*
REQARRAY("SER	VICE CONNECTED PERCENTAGE" , BLDREQARRAY+13, VICE CONNECTED" , BLDREQARRAY+12
REQARRAY("STA	TION NUMBER" , BLDREQARRAY+4*
REQARRAY("STO	P CODE" , BLDREQARRAY+14*
REQARRAY("VAO	S GUID" , BLDREQARRAY+19*
REQRESULT	CREATEWALKIN+2~, CREATEWALKIN+34, DISPOSITIONREQ~
REQRESULT("Error"	CREATEWALKIN+22, CREATEWALKIN+23
REQRESULT("Request"	CREATEWALKIN+31, DISPOSITIONREQ+2, BLDAPPTARRAY+8
REQRESULT1	CREATEWALKIN+2~, CREATEWALKIN+24
REQRESULT1("Error"	CREATEWALKIN+23*
REQRETURN	CREATEWALKIN+3~, CREATEWALKIN+20
REQUEST	CREATEWALKIN+34, DISPOSITIONREQ~
REQUEST("VAOS	GUID" , DISPOSITIONREQ+3
RESULT	BUILDERROR~, BUILDERROR+2
RETURNERROR	SETEMPTYOBJECT~, BUILDERROR+1~, BUILDERROR+2*, BUILDERROR+3, BUILDERROR+4
RETURNERROR("Appointment"	SETEMPTYOBJECT+1*
RETURNIEN	BLDREQARRAY+1~
RLIST	CREATEWALKIN+3~
S	CREATEWALKIN+5~
SDCLINSTOP	CREATEWALKIN+3~
SDCONTEXT	CREATEWALKIN~, CREATEWALKIN+9, CREATEWALKIN+20, CREATEWALKIN+28, CREATEWALKIN+34, CREATEWALKIN+38, DISPOSITIONREQ~, DISPOSITIONREQ+6
SDCONTEXT("AC	HERON AUDIT ID" , CREATEWALKIN+13
SDCONTEXT("US	ER DUZ" , CREATEWALKIN+11
SDERRORS	CREATEWALKIN+3~, CREATEWALKIN+9, CREATEWALKIN+10, CREATEWALKIN+16, CREATEWALKIN+17, CREATEWALKIN+39
SDMODE	CREATEWALKIN+4~
SDPARAMS	CREATEWALKIN+3~, CREATEWALKIN+38
SDPARAMS("APP	OINTMENT IEN" , CREATEWALKIN+36*
SDPARAMS("CHE	CKIN DATE TIME" , CREATEWALKIN+37*
TMPJSONRETURN	CREATEWALKIN+27!
VA	CREATEWALKIN+5~
VACNTRY	CREATEWALKIN+5~
VAERR	CREATEWALKIN+5~
VALRETURN	CREATEWALKIN+3~, CREATEWALKIN+16
VEFS12	CREATEWALKIN+5~
VEFS9	CREATEWALKIN+5~
VEFSFAC	CREATEWALKIN+5~
VEFSPID	CREATEWALKIN+5~
VEFSQ	CREATEWALKIN+5~
VESPID	CREATEWALKIN+5~
X	CREATEWALKIN+2~
XX	CREATEWALKIN+5~
Y	CREATEWALKIN+2~
Z0	CREATEWALKIN+5~
ZTSK	CREATEWALKIN+5~
