Routine: SDES897P

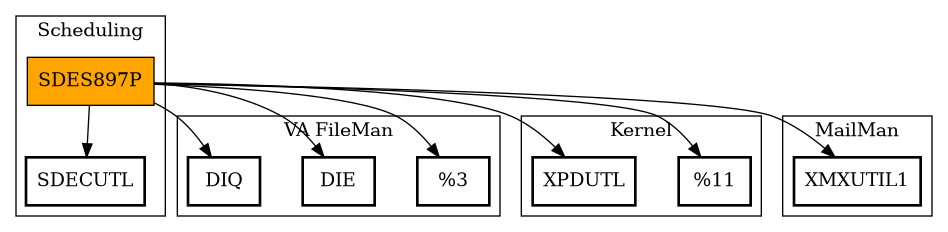

Package	Total	Call Graph
VA FileMan	3	NOW^%DTC (,FILE,UPDATE,WP)^DIE $$GET1^DIQ
Kernel	2	^%ZTLOAD MES^XPDUTL
MailMan	1	$$CTRL^XMXUTIL1
Scheduling	1	$$WPSTR^SDECUTL

Entry Points

Name	Comments	DBIA/ICR reference
EN	; Update the VS GUI version in #409.98
FIND	;FIND THE IEN FOR "VS GUI NATIONAL"
VERSION	;SET THE NEW VERSION UPDATE IN SDEC SETTING FILE #409.98 TO 1.7.63
NOFIND	;"VS GUI NATIONAL" NOT FOUND
TASK	;
CLNREMRKS	;
TASK2	; tasks off process to remove control characters from Recall Reminders file
CLNRECREMS	;
TASK3	; tasks off process to remove control characters from SDEC Appt Request file
CLNAPREQS	;
TASK4	; tasks off process to remove control characters from SDEC Appointment file
CLNAPPTS	;

External References

Name	Field # of Occurrence
NOW^%DTC	TASK+8, TASK2+8, TASK3+8, TASK4+8
^%ZTLOAD	TASK+8, TASK2+8, TASK3+8, TASK4+8
^DIE	VERSION+1, VERSION+4
FILE^DIE	CLNREMRKS+10, CLNRECREMS+8, CLNRECREMS+16, CLNAPREQS+9, CLNAPREQS+16, CLNAPPTS+14, CLNAPPTS+21
UPDATE^DIE	CLNAPPTS+38
WP^DIE	CLNAPPTS+31
$$GET1^DIQ	CLNREMRKS+6, CLNRECREMS+5, CLNRECREMS+13, CLNAPREQS+5, CLNAPREQS+6, CLNAPREQS+13, CLNAPPTS+7, CLNAPPTS+10, CLNAPPTS+18, CLNAPPTS+35
$$WPSTR^SDECUTL	CLNAPPTS+28
$$CTRL^XMXUTIL1	CLNREMRKS+8, CLNRECREMS+6, CLNRECREMS+15, CLNAPREQS+7, CLNAPREQS+15, CLNAPPTS+12, CLNAPPTS+20, CLNAPPTS+30, CLNAPPTS+37
MES^XPDUTL	FIND+2, FIND+3, NOFIND+1, TASK+1, TASK+2, TASK+3, TASK+4, TASK+5, TASK+10, TASK+11 , TASK+13, TASK+14, TASK2+1, TASK2+2, TASK2+3, TASK2+4, TASK2+5, TASK2+10, TASK2+11, TASK2+13 , TASK2+14, TASK3+1, TASK3+2, TASK3+3, TASK3+4, TASK3+5, TASK3+10, TASK3+11, TASK3+13, TASK3+14 , TASK4+1, TASK4+2, TASK4+3, TASK4+4, TASK4+5, TASK4+10, TASK4+11, TASK4+13, TASK4+14

FileMan Files Accessed Via FileMan Db Call

FileNo	Call Tags
2.98	GET1^DIQ
^SD(403.5 - [#403.5]	GET1^DIQ
403.57	GET1^DIQ
^SDEC(409.84 - [#409.84]	GET1^DIQ, WP^DIE
409.847	GET1^DIQ
^SDEC(409.85 - [#409.85]	GET1^DIQ
409.8527	GET1^DIQ

Global Variables Directly Accessed

Name	Line Occurrences (* Changed, ! Killed)
^DPT - [#2]	CLNREMRKS+3, CLNREMRKS+5
^SD(403.5 - [#403.5]	CLNRECREMS+4, CLNRECREMS+11, CLNRECREMS+12
^SDEC(409.84 - [#409.84]	CLNAPPTS+4, CLNAPPTS+6, CLNAPPTS+26, CLNAPPTS+34
^SDEC(409.85 - [#409.85]	CLNAPREQS+4, CLNAPREQS+12, CLNAPPTS+17
^SDEC(409.98 - [#409.98]	FIND+4, VERSION+3

Label References

Name	Line Occurrences
FIND	EN+1
NOFIND	FIND+4
TASK	EN+2
TASK2	EN+3
TASK3	EN+4
TASK4	EN+5
VERSION	FIND+5

Local Variables

Legend:

>>	Not killed explicitly
*	Changed
!	Killed
~	Newed

Name	Field # of Occurrence
APPTIEN	CLNREMRKS+1~, CLNREMRKS+4, CLNREMRKS+5, CLNREMRKS+6, CLNREMRKS+9, CLNAPPTS+2~, CLNAPPTS+5, CLNAPPTS+6, CLNAPPTS+7, CLNAPPTS+26 , CLNAPPTS+31, CLNAPPTS+34, CLNAPPTS+35, CLNAPPTS+37
APREQIEN	CLNAPREQS+2~, CLNAPREQS+3, CLNAPREQS+4, CLNAPREQS+5, CLNAPREQS+6, CLNAPREQS+8, CLNAPREQS+12, CLNAPREQS+13, CLNAPREQS+15, CLNAPPTS+2~ , CLNAPPTS+9*, CLNAPPTS+10, CLNAPPTS+13, CLNAPPTS+17, CLNAPPTS+18, CLNAPPTS+20
COMAUDIEN	CLNRECREMS+2~, CLNRECREMS+10, CLNRECREMS+11, CLNRECREMS+12, CLNRECREMS+13, CLNRECREMS+15, CLNAPREQS+2~, CLNAPREQS+11, CLNAPREQS+12, CLNAPREQS+13 , CLNAPREQS+15, CLNAPPTS+2~, CLNAPPTS+16, CLNAPPTS+17, CLNAPPTS+18, CLNAPPTS+20, CLNAPPTS+33, CLNAPPTS+34, CLNAPPTS+35, CLNAPPTS+37
COMMARRAY	CLNAPPTS+2~, CLNAPPTS+25!, CLNAPPTS+27, CLNAPPTS+28
COMMARRAY(	CLNAPPTS+26*
COMMENT	CLNRECREMS+2~, CLNRECREMS+13, CLNRECREMS+14, CLNRECREMS+15, CLNAPREQS+2~, CLNAPREQS+13, CLNAPREQS+14, CLNAPREQS+15, CLNAPPTS+2~, CLNAPPTS+18* , CLNAPPTS+19, CLNAPPTS+20, CLNAPPTS+35*, CLNAPPTS+36, CLNAPPTS+37
COMMENTS	CLNRECREMS+2~, CLNRECREMS+5, CLNRECREMS+6, CLNRECREMS+7, CLNAPREQS+2~, CLNAPREQS+6, CLNAPREQS+7, CLNAPREQS+8, CLNAPPTS+2~, CLNAPPTS+10* , CLNAPPTS+12, CLNAPPTS+13, CLNAPPTS+28, CLNAPPTS+29, CLNAPPTS+30
COMMIEN	CLNAPPTS+2~, CLNAPPTS+24, CLNAPPTS+26
DA	VERSION+1, VERSION+2!, VERSION+4, VERSION+5!
DATEIEN	CLNAPPTS+2~, CLNAPPTS+3, CLNAPPTS+4, CLNAPPTS+6
DIE	VERSION+1, VERSION+2!, VERSION+4, VERSION+5!
DR	VERSION+1, VERSION+2!, VERSION+4, VERSION+5!
DT	VERSION+1, VERSION+4
EDITEDNOTE	CLNAPPTS+2~
EDITEDNOTE(1	CLNAPPTS+30*
FDA	CLNREMRKS+1~, CLNREMRKS+10!, CLNRECREMS+2~, CLNRECREMS+8!, CLNRECREMS+16!, CLNAPREQS+2~, CLNAPREQS+9!, CLNAPREQS+16!, CLNAPPTS+2~, CLNAPPTS+14! , CLNAPPTS+21!, CLNAPPTS+38!
FDA(	CLNREMRKS+9, CLNRECREMS+7, CLNRECREMS+15, CLNAPREQS+8, CLNAPREQS+15, CLNAPPTS+13, CLNAPPTS+20, CLNAPPTS+37
RECREQIEN	CLNRECREMS+2~, CLNRECREMS+3, CLNRECREMS+4, CLNRECREMS+5, CLNRECREMS+7, CLNRECREMS+11, CLNRECREMS+12, CLNRECREMS+13, CLNRECREMS+15
REM	CLNREMRKS+1~, CLNREMRKS+6, CLNREMRKS+7, CLNREMRKS+8, CLNREMRKS+9
REQREC	CLNAPPTS+2~, CLNAPPTS+7*, CLNAPPTS+8, CLNAPPTS+9
SDDFN	CLNREMRKS+1~, CLNREMRKS+2, CLNREMRKS+3, CLNREMRKS+5, CLNREMRKS+6, CLNREMRKS+9
SDECDA	FIND+1~, FIND+4*, VERSION+1
SDECDA1	FIND+1~, VERSION+3*, VERSION+4
X	TASK+6~, TASK+8, TASK2+6~, TASK2+8, TASK3+6~, TASK3+8, TASK4+6~, TASK4+8
ZTDESC	TASK+6~, TASK+7, TASK2+6~, TASK2+7, TASK3+6~, TASK3+7, TASK4+6~, TASK4+7
ZTDTH	TASK+6~, TASK+8, TASK2+6~, TASK2+8, TASK3+6~, TASK3+8, TASK4+6~, TASK4+8
ZTIO	TASK+6~, TASK+8, TASK2+6~, TASK2+8, TASK3+6~, TASK3+8, TASK4+6~, TASK4+8
ZTRTN	TASK+6~, TASK+8, TASK2+6~, TASK2+8, TASK3+6~, TASK3+8, TASK4+6~, TASK4+8
ZTSAVE	TASK+6~, TASK2+6~, TASK3+6~, TASK4+6~
ZTSAVE("*"	TASK+8, TASK2+8, TASK3+8, TASK4+8
ZTSK	TASK+6~, TASK+9, TASK+10, TASK+12, TASK2+6~, TASK2+9, TASK2+10, TASK2+12, TASK3+6~, TASK3+9 , TASK3+10, TASK3+12, TASK4+6~, TASK4+9, TASK4+10, TASK4+12
