Routine: SDES2EDITAPREQ2

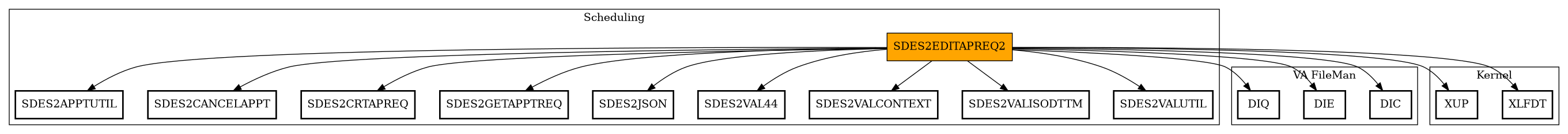

Package	Total	Call Graph
Scheduling	9	$$CLEANCMMTS^SDES2APPTUTIL $$DUPPIDCHK^SDES2CANCELAPPT (ADDPIDHISTORY,VALCREDITAMIS,VALIDATEDATEPREF,VALPRIMAMIS)^SDES2CRTAPREQ GETREQUEST^SDES2GETAPPTREQ (BUILDJSON,ERRLOG)^SDES2JSON CONDAMISCHECK^SDES2VAL44 VALCONTEXT^SDES2VALCONTEXT $$VALISODTTM^SDES2VALISODTTM (VALFIELD,VALFILEIEN)^SDES2VALUTIL
VA FileMan	3	$$FIND1^DIC (FILE,UPDATE,WP)^DIE $$GET1^DIQ
Kernel	2	$$NOW^XLFDT DUZ^XUP

Name	Comments	DBIA/ICR reference
EDITREQUEST(JSONRETURN,SDCONTEXT,REQUEST)	;
VALIDATE(REQUEST,FILEDATA,INSTITUTIONIEN,ERRORS)	;
BUILDER(REQUEST,INSTITUTIONIEN,EAS)	;
BUILDAPPTDATA(REQIEN,APPTDATETIME,CLINICIEN,SERVCONNPERC,SERVCONN,APPTTYPE,EAS,USER)	;
EDITMRTCLINKS(REQUEST,REQIEN)	;
EDITMRTCPID(REQUEST,REQIEN)	;
EDITPRNTPIDMULT(REQUEST,PARENTIEN,ORIGPID)	;
BUILDMRTCLINKS(REQUEST,REQIEN)	; called from SDESCREATEAPPT after appt is made from mrtc child
BUILDMRTCPID(REQUEST,REQIEN)	; called from SDESCREATEAPPT after appt is made from mrtc child
BUILDCOMMENTS(REQUEST,REQIEN)	;
AUDIT(REQIEN,CLINICIEN,STOPCODE)	;
STATIONTOINST(ERRORS,STATIONNUM,INSTNAME)	; station number has precedence over institution name

Name	Field # of Occurrence
$$FIND1^DIC	BUILDAPPTDATA+17, STATIONTOINST+4, STATIONTOINST+5
FILE^DIE	BUILDER+29, BUILDAPPTDATA+19, BUILDAPPTDATA+30, EDITMRTCLINKS+7, EDITMRTCPID+6, EDITPRNTPIDMULT+5
UPDATE^DIE	BUILDER+40, BUILDMRTCLINKS+4, BUILDMRTCPID+6, AUDIT+6
WP^DIE	BUILDCOMMENTS+5, BUILDCOMMENTS+10
$$GET1^DIQ	VALIDATE+10, VALIDATE+14, VALIDATE+86, VALIDATE+92, BUILDER+3, BUILDER+4, BUILDAPPTDATA+7, BUILDAPPTDATA+8, BUILDAPPTDATA+9, BUILDAPPTDATA+22 , BUILDAPPTDATA+27, BUILDMRTCPID+3
$$CLEANCMMTS^SDES2APPTUTIL	BUILDER+24
$$DUPPIDCHK^SDES2CANCELAPPT	VALIDATE+34
ADDPIDHISTORY^SDES2CRTAPREQ	BUILDER+42
VALCREDITAMIS^SDES2CRTAPREQ	VALIDATE+29
VALIDATEDATEPREF^SDES2CRTAPREQ	VALIDATE+72
VALPRIMAMIS^SDES2CRTAPREQ	VALIDATE+28
GETREQUEST^SDES2GETAPPTREQ	EDITREQUEST+13
BUILDJSON^SDES2JSON	EDITREQUEST+4, EDITREQUEST+10, EDITREQUEST+16
ERRLOG^SDES2JSON	VALIDATE+10, VALIDATE+14, VALIDATE+23, VALIDATE+25, VALIDATE+27, VALIDATE+34, VALIDATE+86, VALIDATE+88, VALIDATE+93, STATIONTOINST+2 , STATIONTOINST+4, STATIONTOINST+5
CONDAMISCHECK^SDES2VAL44	VALIDATE+30
VALCONTEXT^SDES2VALCONTEXT	EDITREQUEST+3
$$VALISODTTM^SDES2VALISODTTM	VALIDATE+33
VALFIELD^SDES2VALUTIL	VALIDATE+17, VALIDATE+37, VALIDATE+41, VALIDATE+51, VALIDATE+53, VALIDATE+57, VALIDATE+61, VALIDATE+65, VALIDATE+69, VALIDATE+75 , VALIDATE+78, VALIDATE+80
VALFILEIEN^SDES2VALUTIL	VALIDATE+6, VALIDATE+9, VALIDATE+21, VALIDATE+45, VALIDATE+84
$$NOW^XLFDT	BUILDER+37, BUILDAPPTDATA+5, BUILDAPPTDATA+15, AUDIT+2
DUZ^XUP	EDITREQUEST+6

RPC Name	Call Tags
SDES2 EDIT APPT REQ2	EDITREQUEST

FileNo	Call Tags
^DIC(4 - [#4]	FIND1^DIC
^DG(40.8 - [#40.8]	GET1^DIQ
^SDEC(409.85 - [#409.85]	GET1^DIQ, WP^DIE
^SDEC(409.853 - [#409.853]	FIND1^DIC
^SC - [#44]	GET1^DIQ

Name	Line Occurrences (* Changed, ! Killed)
^SDEC(409.85 - [#409.85]	VALIDATE+88, VALIDATE+90, BUILDAPPTDATA+26, EDITMRTCLINKS+3, EDITMRTCPID+3, EDITPRNTPIDMULT+3, BUILDMRTCLINKS+2, BUILDMRTCPID+4

Name	Line Occurrences
$$BUILDER	EDITREQUEST+12
$$STATIONTOINST	VALIDATE+48
AUDIT	BUILDER+53
BUILDCOMMENTS	BUILDER+44
EDITPRNTPIDMULT	BUILDER+49
VALIDATE	EDITREQUEST+9

Local Variables

Legend:

>>	Not killed explicitly
*	Changed
!	Killed
~	Newed

Name	Field # of Occurrence
APPTDATETIME	BUILDAPPTDATA~, BUILDAPPTDATA+4
APPTTYPE	BUILDAPPTDATA~, BUILDAPPTDATA+3
CHILDIEN	VALIDATE+1~, VALIDATE+89, VALIDATE+90, VALIDATE+91, VALIDATE+92, BUILDAPPTDATA+24~, BUILDAPPTDATA+25, BUILDAPPTDATA+26, BUILDAPPTDATA+27
CLINICIEN	VALIDATE+1~, BUILDAPPTDATA~, BUILDAPPTDATA+6, BUILDAPPTDATA+7, BUILDAPPTDATA+8, BUILDAPPTDATA+9, AUDIT~, AUDIT+4
DATERANGE1	BUILDCOMMENTS+1~, BUILDCOMMENTS+7*
DATERANGE2	BUILDCOMMENTS+1~, BUILDCOMMENTS+8*
DATERANGE3	BUILDCOMMENTS+1~, BUILDCOMMENTS+9*
DUZ	EDITREQUEST+6~, BUILDER+38, AUDIT+3
EAS	BUILDER~, BUILDER+28, BUILDAPPTDATA~, BUILDAPPTDATA+14
EDITPATCOM	BUILDCOMMENTS+1~
EDITPATCOM(1	BUILDCOMMENTS+5, BUILDCOMMENTS+6
EDITPATCOM(2	BUILDCOMMENTS+7*
EDITPATCOM(3	BUILDCOMMENTS+8*
EDITPATCOM(4	BUILDCOMMENTS+9*
ERRORS	EDITREQUEST+1~, EDITREQUEST+3, EDITREQUEST+4, EDITREQUEST+9, EDITREQUEST+10, VALIDATE~, VALIDATE+6, VALIDATE+9, VALIDATE+10, VALIDATE+14 , VALIDATE+17, VALIDATE+21, VALIDATE+23, VALIDATE+25, VALIDATE+27, VALIDATE+28, VALIDATE+29, VALIDATE+30, VALIDATE+33, VALIDATE+34 , VALIDATE+37, VALIDATE+41, VALIDATE+45, VALIDATE+48, VALIDATE+51, VALIDATE+53, VALIDATE+57, VALIDATE+61, VALIDATE+65, VALIDATE+69 , VALIDATE+72, VALIDATE+75, VALIDATE+78, VALIDATE+80, VALIDATE+84, VALIDATE+86, VALIDATE+88, VALIDATE+93, STATIONTOINST~, STATIONTOINST+2 , STATIONTOINST+4, STATIONTOINST+5
ERRORS("Request"	EDITREQUEST+4, EDITREQUEST+10
FDA	BUILDER+1~, BUILDER+29!, BUILDER+40!, BUILDAPPTDATA+1~, BUILDAPPTDATA+19!, BUILDAPPTDATA+30!, EDITMRTCLINKS+1~, EDITMRTCLINKS+7!, EDITMRTCPID+1~, EDITMRTCPID+6! , EDITPRNTPIDMULT+1~, EDITPRNTPIDMULT+5!, BUILDMRTCLINKS+1~, BUILDMRTCLINKS+4!, BUILDMRTCPID+1~, BUILDMRTCPID+6!, AUDIT+1~, AUDIT+6!
FDA(	BUILDER+5, BUILDER+6, BUILDER+7, BUILDER+8, BUILDER+9, BUILDER+11, BUILDER+12, BUILDER+13, BUILDER+14, BUILDER+15 , BUILDER+16, BUILDER+17, BUILDER+18, BUILDER+19, BUILDER+20, BUILDER+25, BUILDER+26, BUILDER+27, BUILDER+28, BUILDER+37 , BUILDER+38, BUILDER+39, BUILDAPPTDATA+3, BUILDAPPTDATA+4, BUILDAPPTDATA+5, BUILDAPPTDATA+6, BUILDAPPTDATA+7, BUILDAPPTDATA+8, BUILDAPPTDATA+9, BUILDAPPTDATA+10 , BUILDAPPTDATA+11, BUILDAPPTDATA+12, BUILDAPPTDATA+13, BUILDAPPTDATA+14, BUILDAPPTDATA+15, BUILDAPPTDATA+16, BUILDAPPTDATA+17, BUILDAPPTDATA+18, BUILDAPPTDATA+29, EDITMRTCLINKS+5 , EDITMRTCLINKS+6, EDITMRTCPID+5, EDITPRNTPIDMULT+4, BUILDMRTCLINKS+3, BUILDMRTCPID+5, AUDIT+2, AUDIT+3, AUDIT+4, AUDIT+5*
FDAERR	BUILDER+1~, BUILDAPPTDATA+1~, EDITMRTCLINKS+1~, EDITMRTCPID+1~, EDITPRNTPIDMULT+1~, BUILDMRTCLINKS+1~, BUILDMRTCPID+1~, AUDIT+1~
FILEDATA	EDITREQUEST+1~, EDITREQUEST+8*, EDITREQUEST+9, EDITREQUEST+12, VALIDATE~, VALIDATE+28, VALIDATE+29
FILEDATA("APP	OINTMENT TYPE" , VALIDATE+18*
FILEDATA("MODALITY"	VALIDATE+54*
FILEDATA("PAT	IENT INDICATED DATE" , VALIDATE+33, VALIDATE+34, VALIDATE+92, IENT STATUS" , VALIDATE+70
FILEDATA("PRI	ORITY GROUP" , VALIDATE+58*
FILEDATA("PRIORITY"	VALIDATE+38*
FILEDATA("REQ	UESTED BY" , VALIDATE+43*, VALIDATE+44
FILEDATA("SER	VICE CONNECTED" , VALIDATE+62*
FILEDATA("TIM	E SENSITIVE" , VALIDATE+76*
FOUND	BUILDAPPTDATA+24~, BUILDAPPTDATA+25, BUILDAPPTDATA+26, BUILDAPPTDATA+27, BUILDAPPTDATA+28
INSTITUTIONIEN	EDITREQUEST+1~, EDITREQUEST+9, EDITREQUEST+12, VALIDATE~, VALIDATE+48, BUILDER~, BUILDER+6, STATIONTOINST+1~, STATIONTOINST+4, STATIONTOINST+5* , STATIONTOINST+6
INSTNAME	STATIONTOINST~, STATIONTOINST+2, STATIONTOINST+3, STATIONTOINST+4
JSONRETURN	EDITREQUEST~, EDITREQUEST+4, EDITREQUEST+10, EDITREQUEST+16
LASTLENGTH	BUILDER+31~, BUILDER+34*, BUILDER+35, BUILDER+36
LASTNOTE	BUILDER+1~, BUILDER+4*, BUILDER+34
NEWLENGTH	BUILDER+31~, BUILDER+34*, BUILDER+35, BUILDER+36
NEWNOTE	BUILDER+31~, BUILDER+36*, BUILDER+39
NUM	EDITMRTCLINKS+1~, EDITMRTCLINKS+2, EDITMRTCLINKS+4, EDITMRTCLINKS+5, EDITMRTCLINKS+6, EDITMRTCPID+1~, EDITMRTCPID+2, EDITMRTCPID+4, EDITMRTCPID+5, EDITPRNTPIDMULT+1~ , EDITPRNTPIDMULT+2, BUILDCOMMENTS+1~, BUILDCOMMENTS+2
OLDPIDIEN	EDITPRNTPIDMULT+1~, EDITPRNTPIDMULT+3*, EDITPRNTPIDMULT+4
ORIGPID	BUILDER+1~, BUILDER+3*, BUILDER+49, EDITPRNTPIDMULT~, EDITPRNTPIDMULT+3
PARENTIEN	BUILDAPPTDATA+21~, BUILDAPPTDATA+22*, BUILDAPPTDATA+23, BUILDAPPTDATA+26, BUILDAPPTDATA+29, EDITPRNTPIDMULT~, EDITPRNTPIDMULT+3, EDITPRNTPIDMULT+4
PC	BUILDCOMMENTS+4~*, BUILDCOMMENTS+5, BUILDCOMMENTS+6, BUILDCOMMENTS+7, BUILDCOMMENTS+8, BUILDCOMMENTS+9
REQCOM	BUILDER+24~*, BUILDER+25
REQIEN	EDITREQUEST+1~, EDITREQUEST+12, EDITREQUEST+13, BUILDER+1~, BUILDER+2, BUILDER+3, BUILDER+4, BUILDER+5, BUILDER+6, BUILDER+7 , BUILDER+8, BUILDER+9, BUILDER+11, BUILDER+12, BUILDER+13, BUILDER+14, BUILDER+15, BUILDER+16, BUILDER+17, BUILDER+18 , BUILDER+19, BUILDER+20, BUILDER+25, BUILDER+26, BUILDER+27, BUILDER+28, BUILDER+37, BUILDER+38, BUILDER+39, BUILDAPPTDATA~ , BUILDAPPTDATA+2*, BUILDAPPTDATA+3, BUILDAPPTDATA+4, BUILDAPPTDATA+5, BUILDAPPTDATA+6, BUILDAPPTDATA+7, BUILDAPPTDATA+8, BUILDAPPTDATA+9, BUILDAPPTDATA+10, BUILDAPPTDATA+11 , BUILDAPPTDATA+12, BUILDAPPTDATA+13, BUILDAPPTDATA+14, BUILDAPPTDATA+15, BUILDAPPTDATA+16, BUILDAPPTDATA+17, BUILDAPPTDATA+18, BUILDAPPTDATA+22, EDITMRTCLINKS~, EDITMRTCLINKS+3 , EDITMRTCLINKS+5, EDITMRTCLINKS+6, EDITMRTCPID~, EDITMRTCPID+3, EDITMRTCPID+5, BUILDMRTCLINKS~, BUILDMRTCLINKS+2, BUILDMRTCLINKS+3, BUILDMRTCPID~, BUILDMRTCPID+3 , BUILDMRTCPID+4, BUILDMRTCPID+5, BUILDCOMMENTS~, BUILDCOMMENTS+5, BUILDCOMMENTS+10, AUDIT~, AUDIT+2, AUDIT+3, AUDIT+4, AUDIT+5
REQUEST	EDITREQUEST~, EDITREQUEST+8, EDITREQUEST+9, VALIDATE~, VALIDATE+28, VALIDATE+29, VALIDATE+72, BUILDER~, BUILDER+44, BUILDER+49 , EDITMRTCLINKS~, EDITMRTCPID~, EDITPRNTPIDMULT~, BUILDMRTCLINKS~, BUILDMRTCPID~, BUILDCOMMENTS~
REQUEST(	BUILDCOMMENTS+5, BUILDCOMMENTS+6, BUILDCOMMENTS+7, BUILDCOMMENTS+8, BUILDCOMMENTS+9
REQUEST("APPO	INTMENT TYPE" , VALIDATE+16, VALIDATE+17, BUILDER+14
REQUEST("CLIN	IC IEN" , VALIDATE+21, VALIDATE+22, VALIDATE+23, VALIDATE+25, VALIDATE+33, BUILDER+10, BUILDER+11, BUILDER+53
REQUEST("CRED	IT AMIS" , VALIDATE+25, VALIDATE+27, VALIDATE+29, VALIDATE+30, BUILDER+13
REQUEST("DFN"	VALIDATE+9, VALIDATE+10, VALIDATE+86
REQUEST("DUPL	ICATE REASON" , VALIDATE+80, BUILDER+27
REQUEST("INST	ITUTION NAME" , VALIDATE+47, VALIDATE+48
REQUEST("MODALITY"	VALIDATE+52, VALIDATE+53, BUILDER+9
REQUEST("MRTC"	VALIDATE+83, VALIDATE+84, VALIDATE+86, VALIDATE+88, VALIDATE+90, BUILDER+47, BUILDER+49, EDITMRTCLINKS+5, EDITMRTCLINKS+6, EDITMRTCPID+5 , BUILDMRTCLINKS+2, BUILDMRTCLINKS+3, BUILDMRTCPID+2
REQUEST("PATI	ENT COMMENT" , BUILDER+44, BUILDCOMMENTS+3, ENT INDICATED DATE" , VALIDATE+32, VALIDATE+33, BUILDER+42, BUILDER+47, EDITPRNTPIDMULT+4, ENT PREFERRED END DATE" , VALIDATE+72, ENT PREFERRED START DATE" , VALIDATE+72, BUILDER+44, ENT STATUS" , VALIDATE+68, VALIDATE+69, BUILDER+5
REQUEST("PRIM	ARY AMIS" , VALIDATE+22, VALIDATE+23, VALIDATE+25, VALIDATE+27, VALIDATE+28, VALIDATE+30, BUILDER+10, BUILDER+12, BUILDER+53
REQUEST("PRIO	RITY GROUP" , VALIDATE+56, VALIDATE+57, BUILDER+16
REQUEST("PRIORITY"	VALIDATE+36, VALIDATE+37, BUILDER+15
REQUEST("PROV	IDER IEN" , VALIDATE+45, BUILDER+18
REQUEST("REQU	EST COMMENT" , VALIDATE+78, BUILDER+23, BUILDER+24, BUILDER+25*, BUILDER+33, BUILDER+34, BUILDER+36, EST IEN" , VALIDATE+6 , VALIDATE+7, VALIDATE+10, BUILDER+2, BUILDER+42, BUILDER+44, BUILDER+53, BUILDER+55, EST SUB TYPE" , BUILDER+7, ESTED BY" , VALIDATE+40, VALIDATE+41, BUILDER+17
REQUEST("SERV	ICE CONNECTED PERCENTAGE" , VALIDATE+64, VALIDATE+65, BUILDER+19, ICE CONNECTED" , VALIDATE+60, VALIDATE+61, BUILDER+20
REQUEST("STAT	ION NUMBER" , VALIDATE+47, VALIDATE+48
REQUEST("TIME	SENSITIVE" , VALIDATE+74, VALIDATE+75, BUILDER+26
REQUEST("VAOS	GUID" , VALIDATE+51, BUILDER+8
RETURN	EDITREQUEST+1~, EDITREQUEST+13, EDITREQUEST+14, EDITREQUEST+16
RETURN("Request"	EDITREQUEST+14*
SDCONTEXT	EDITREQUEST~, EDITREQUEST+3
SDCONTEXT("AC	HERON AUDIT ID" , EDITREQUEST+12
SDCONTEXT("US	ER DUZ" , EDITREQUEST+6
SDPID	BUILDMRTCPID+1~, BUILDMRTCPID+2, BUILDMRTCPID+3, BUILDMRTCPID+4, BUILDMRTCPID+5
SERVCONN	BUILDAPPTDATA~, BUILDAPPTDATA+13
SERVCONNPERC	BUILDAPPTDATA~, BUILDAPPTDATA+12
STATIONNUM	STATIONTOINST~, STATIONTOINST+2, STATIONTOINST+3, STATIONTOINST+5
STOPCODE	AUDIT~, AUDIT+5
SUBIEN	EDITMRTCLINKS+1~, EDITMRTCLINKS+2, EDITMRTCLINKS+3, EDITMRTCLINKS+5, EDITMRTCLINKS+6, EDITMRTCPID+1~, EDITMRTCPID+2, EDITMRTCPID+3, EDITMRTCPID+5, EDITPRNTPIDMULT+1~ , EDITPRNTPIDMULT+2, BUILDMRTCLINKS+1~, BUILDMRTCLINKS+2, BUILDMRTCLINKS+3
USER	BUILDAPPTDATA~, BUILDAPPTDATA+10, BUILDAPPTDATA+16
VALREQUESTIEN	VALIDATE+1~, VALIDATE+5, VALIDATE+7, VALIDATE+10, VALIDATE+13, VALIDATE+14, VALIDATE+34, VALIDATE+83, VALIDATE+88, VALIDATE+91
VALRETURN	VALIDATE+1~, VALIDATE+6, VALIDATE+7, VALIDATE+9, VALIDATE+10, VALIDATE+17, VALIDATE+21, VALIDATE+37, VALIDATE+38, VALIDATE+41 , VALIDATE+42, VALIDATE+45, VALIDATE+51, VALIDATE+53, VALIDATE+57, VALIDATE+61, VALIDATE+65, VALIDATE+69, VALIDATE+75, VALIDATE+76 , VALIDATE+78, VALIDATE+80, VALIDATE+84, VALIDATE+85
VALRETURN(	VALIDATE+18, VALIDATE+38, VALIDATE+43, VALIDATE+54, VALIDATE+58, VALIDATE+62, VALIDATE+70, VALIDATE+76
X	BUILDER+1~
Y	BUILDER+1~
