Routine: SDES907P

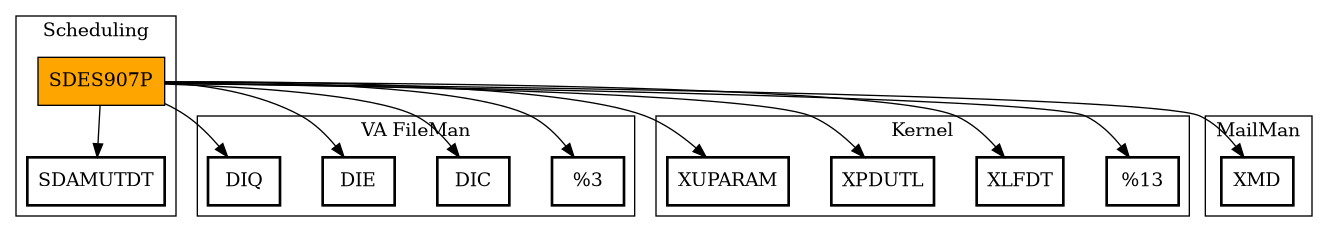

Package	Total	Call Graph
Kernel	4	^%ZTLOAD $$NOW^XLFDT MES^XPDUTL $$KSP^XUPARAM
VA FileMan	4	NOW^%DTC $$FIND1^DIC (FILE,UPDATE)^DIE $$GET1^DIQ
MailMan	1	^XMD
Scheduling	1	$$FMTISO^SDAMUTDT

Entry Points

Name	Comments	DBIA/ICR reference
EN	;
SDECSET	; Update SDEC Help link text to that ISS reflects preferens set from IVC
TASK	; tasks off process to remove null comment audit entries from Recall Reminders file
VSE9701	;disposition open parent MTRC requests when all child requests have appointments scheduled
FIXMRTC(SDCONTEXT,SDINPUT)	;
MAIL	;
TASK1	; tasks off process to remove null comment audit entries from Recall Reminders file
CLNRECREMS	;
TASK2	; tasks off process to remove null comment audit entries from SDEC Appt Request file
CLNAPREQS	;
TASK3	; tasks off process to remove null note audit entries from SDEC Appointment file
CLNAPPTS	;

External References

Name	Field # of Occurrence
NOW^%DTC	TASK+7, TASK1+7, TASK2+7, TASK3+7
^%ZTLOAD	TASK+7, TASK1+7, TASK2+7, TASK3+7
$$FIND1^DIC	FIXMRTC+18
FILE^DIE	SDECSET+5, FIXMRTC+21, CLNRECREMS+11, CLNAPREQS+10
UPDATE^DIE	CLNAPPTS+12
$$GET1^DIQ	FIXMRTC+9, FIXMRTC+10, FIXMRTC+14, MAIL+3, CLNRECREMS+8, CLNAPREQS+7, CLNAPPTS+9
$$FMTISO^SDAMUTDT	FIXMRTC+7
$$NOW^XLFDT	FIXMRTC+20
^XMD	MAIL+12
MES^XPDUTL	TASK+1, TASK+2, TASK+3, TASK+4, TASK+9, TASK+10, TASK+12, TASK+13, TASK1+1, TASK1+2 , TASK1+3, TASK1+4, TASK1+9, TASK1+10, TASK1+12, TASK1+13, TASK2+1, TASK2+2, TASK2+3, TASK2+4 , TASK2+9, TASK2+10, TASK2+12, TASK2+13, TASK3+1, TASK3+2, TASK3+3, TASK3+4, TASK3+9, TASK3+10 , TASK3+12, TASK3+13
$$KSP^XUPARAM	MAIL+2

FileMan Files Accessed Via FileMan Db Call

FileNo	Call Tags
^DIC(4 - [#4]	GET1^DIQ
403.57	GET1^DIQ
409.847	GET1^DIQ
^SDEC(409.85 - [#409.85]	GET1^DIQ
409.8527	GET1^DIQ
^SDEC(409.853 - [#409.853]	FIND1^DIC

Global Variables Directly Accessed

Name	Line Occurrences (* Changed, ! Killed)
^SD(403.5 - [#403.5]	CLNRECREMS+4, CLNRECREMS+6, CLNRECREMS+7
^SDEC(409.84 - [#409.84]	CLNAPPTS+4, CLNAPPTS+6, CLNAPPTS+8
^SDEC(409.85 - [#409.85]	FIXMRTC+6, FIXMRTC+8, FIXMRTC+12, CLNAPREQS+4, CLNAPREQS+6
^SDEC(409.98 - [#409.98]	SDECSET+2, SDECSET+3
^XTMP("SDES907P"	VSE9701+2!, FIXMRTC+3, FIXMRTC+23, FIXMRTC+25*, MAIL+13!

Label References

Name	Line Occurrences
FIXMRTC	VSE9701+3
MAIL	VSE9701+4
SDECSET	EN+2
TASK	EN+1
TASK1	EN+3
TASK2	EN+3
TASK3	EN+3

Local Variables

Legend:

>>	Not killed explicitly
*	Changed
!	Killed
~	Newed

Name	Field # of Occurrence
%	MAIL+1~
APPT	FIXMRTC+1~
APPTIEN	FIXMRTC+1~, CLNAPPTS+2~, CLNAPPTS+5, CLNAPPTS+6, CLNAPPTS+8, CLNAPPTS+9, CLNAPPTS+11
APREQIEN	CLNAPREQS+2~, CLNAPREQS+3, CLNAPREQS+4, CLNAPREQS+6, CLNAPREQS+7, CLNAPREQS+9, CLNAPPTS+2~
CHILDCNT	FIXMRTC+1~, FIXMRTC+11, FIXMRTC+13, FIXMRTC+16
CHILDIEN	FIXMRTC+1~, FIXMRTC+11, FIXMRTC+12, FIXMRTC+14
COMAUDIEN	CLNRECREMS+2~, CLNRECREMS+5, CLNRECREMS+6, CLNRECREMS+7, CLNRECREMS+8, CLNRECREMS+10, CLNAPREQS+2~, CLNAPREQS+5, CLNAPREQS+6, CLNAPREQS+7 , CLNAPREQS+9, CLNAPPTS+2~, CLNAPPTS+7, CLNAPPTS+8, CLNAPPTS+9, CLNAPPTS+11
COMMARRAY	CLNAPPTS+2~
COMMENT	CLNRECREMS+2~, CLNRECREMS+8, CLNRECREMS+9, CLNAPREQS+2~, CLNAPREQS+7, CLNAPREQS+8, CLNAPPTS+2~, CLNAPPTS+9*, CLNAPPTS+10
COMMENTS	CLNRECREMS+2~, CLNAPREQS+2~, CLNAPPTS+2~
COMMIEN	CLNAPPTS+2~
CREATEDT	FIXMRTC+1~, FIXMRTC+5, FIXMRTC+6, FIXMRTC+7, FIXMRTC+8
CREATEDTTX	FIXMRTC+1~, FIXMRTC+7*, FIXMRTC+23
D	MAIL+1~
D0	MAIL+1~
D1	MAIL+1~
D2	MAIL+1~
DATEIEN	CLNAPPTS+2~, CLNAPPTS+3, CLNAPPTS+4, CLNAPPTS+6
DG	MAIL+1~
DIC	MAIL+1~
DICR	MAIL+1~
DIFROM	MAIL+1~
DISP	FIXMRTC+1~, FIXMRTC+14*, FIXMRTC+15
DIW	MAIL+1~
DUZ	MAIL+5, MAIL+8
EDITEDNOTE	CLNAPPTS+2~
FDA	SDECSET+1~, SDECSET+5!, FIXMRTC+21!, CLNRECREMS+2~, CLNRECREMS+11!, CLNAPREQS+2~, CLNAPREQS+10!, CLNAPPTS+2~, CLNAPPTS+12!
FDA(	SDECSET+4, FIXMRTC+17, FIXMRTC+18, FIXMRTC+19, FIXMRTC+20, CLNRECREMS+10, CLNAPREQS+9, CLNAPPTS+11
FDAERR	SDECSET+1~
FOUND	FIXMRTC+1~, FIXMRTC+11, FIXMRTC+12, FIXMRTC+15, FIXMRTC+16
MESS1	MAIL+1~, MAIL+4*, MAIL+7
MRTCAPPT	FIXMRTC+1~
NATIEN	SDECSET+1~, SDECSET+2*, SDECSET+3, SDECSET+4
NODENUM	FIXMRTC+1~, FIXMRTC+4, FIXMRTC+22, FIXMRTC+23, FIXMRTC+24*, FIXMRTC+25
NUMMRTC	FIXMRTC+1~
PARENTIEN	FIXMRTC+1~, FIXMRTC+8*, FIXMRTC+9, FIXMRTC+10, FIXMRTC+12, FIXMRTC+17, FIXMRTC+18, FIXMRTC+19, FIXMRTC+20, FIXMRTC+23
RECCNT	FIXMRTC+1~, FIXMRTC+2, FIXMRTC+22, FIXMRTC+25
RECREQIEN	CLNRECREMS+2~, CLNRECREMS+3, CLNRECREMS+4, CLNRECREMS+6, CLNRECREMS+7, CLNRECREMS+8, CLNRECREMS+10
REQREC	CLNAPPTS+2~
SDCONTEXT	VSE9701+1~, VSE9701+3, FIXMRTC~
SDINPUT	VSE9701+1~, VSE9701+3, FIXMRTC~
STANUM	MAIL+1~, MAIL+2, MAIL+3, MAIL+4
SUBIEN	SDECSET+1~, SDECSET+3*, SDECSET+4
X	TASK+5~, TASK+7, TASK1+5~, TASK1+7, TASK2+5~, TASK2+7, TASK3+5~, TASK3+7
XMDUN	MAIL+1~
XMDUZ	MAIL+1~, MAIL+5, MAIL+8
XMSUB	MAIL+1~, MAIL+7*
XMTEXT	MAIL+1~, MAIL+6*
XMY	MAIL+1~
XMY(	MAIL+8*
XMY("BARBER.LORI@DOMAIN.EXT"	MAIL+9*
XMY("DUNNAM.DAVID@DOMAIN.EXT"	MAIL+10*
XMY("VARNO.JOSEPH@DOMAIN.EXT"	MAIL+11*
XMZ	MAIL+1~
ZTDESC	TASK+5~, TASK+6, TASK1+5~, TASK1+6, TASK2+5~, TASK2+6, TASK3+5~, TASK3+6
ZTDTH	TASK+5~, TASK+7, TASK1+5~, TASK1+7, TASK2+5~, TASK2+7, TASK3+5~, TASK3+7
ZTIO	TASK+5~, TASK+7, TASK1+5~, TASK1+7, TASK2+5~, TASK2+7, TASK3+5~, TASK3+7
ZTRTN	TASK+5~, TASK+7, TASK1+5~, TASK1+7, TASK2+5~, TASK2+7, TASK3+5~, TASK3+7
ZTSAVE	TASK+5~, TASK1+5~, TASK2+5~, TASK3+5~
ZTSAVE("*"	TASK+7, TASK1+7, TASK2+7, TASK3+7
ZTSK	TASK+5~, TASK+8, TASK+9, TASK+11, TASK1+5~, TASK1+8, TASK1+9, TASK1+11, TASK2+5~, TASK2+8 , TASK2+9, TASK2+11, TASK3+5~, TASK3+8, TASK3+9, TASK3+11
