Routine: IBCE837ACCU

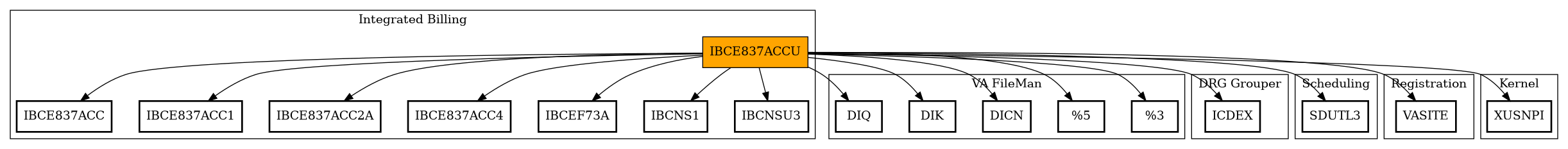

Package	Total	Call Graph
Integrated Billing	7	($$DIV,ALL,UP,USERUP)^IBCE837ACC SET^IBCE837ACC1 UPDATE^IBCE837ACC2A PAT^IBCE837ACC4 $$GETTAX^IBCEF73A ALL^IBCNS1 $$PLCOV^IBCNSU3
VA FileMan	5	DD^%DT (,NOW)^%DTC FILE^DICN ^DIK $$GET1^DIQ
DRG Grouper	1	$$CODEN^ICDEX
Kernel	1	$$QI^XUSNPI
Registration	1	$$SITE^VASITE
Scheduling	1	$$OUTPTPR^SDUTL3

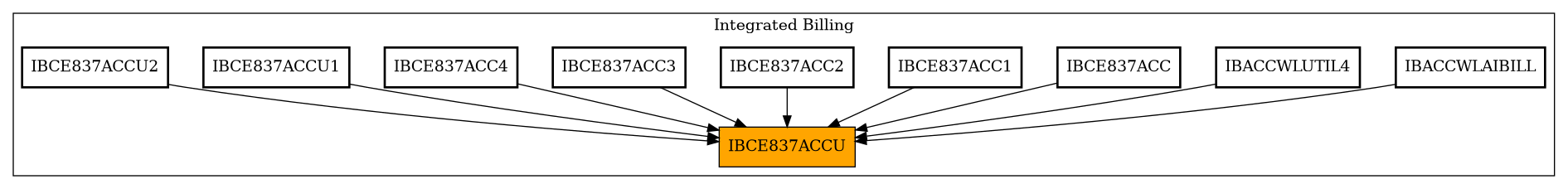

Package	Total	Caller Graph
Integrated Billing	9	IBACCWLAIBILL IBACCWLUTIL4 IBCE837ACC IBCE837ACC1 IBCE837ACC2 IBCE837ACC3 IBCE837ACC4 IBCE837ACCU1 IBCE837ACCU2

Name	Comments	DBIA/ICR reference
D(XD)	;file diagnosis codes
VAL(IBX12)	;function to call to re-try validation/auto-bill creation / auto-transmit ; IBX12 - ien to file 364.9
20	;LOOP 20
22	;LOOP 22
NEXT	;
DT(FIELD)	;
CHKINS(IBPATIEN,IBDOS,IBFT,IBINSNAME)	; ; IBPATIEN = patient IEN pointer ; IBDOS = date of service from 1st service line item in X12 claim ; IBFT = vista form type, 2=Prof, 3=Inst, 7=Dental ; IBINSNAME = return ins name value
CHK35593(IBPNPI,IBPT1,IBSLINE)	; ; IBPNPI=NPI to look for ; IBPT1=provider type ; 85=billing provider ; DN=referring provider ; 82=rendering provider ; 77=service facility ; DQ=supervising provider ; 71=attending provider ; 72=operating physician ; ZZ=other operating physician ; DD=assistant surgeon ; IBSLINE=service line number, if provider is at the line level
TOC(IBINS)	;
PCP(IBPATIEN,IBFT)	;swap primary care physician or billing provider

Name	Field # of Occurrence
DD^%DT	VAL+13
^%DTC	CHKINS+46
NOW^%DTC	VAL+13
FILE^DICN	D+6
^DIK	VAL+23, PCP+26, PCP+41
$$GET1^DIQ	VAL+41, CHKINS+6, CHKINS+7, CHKINS+21, CHKINS+44, CHK35593+37, CHK35593+56, CHK35593+57, TOC+3, PCP+4
$$DIV^IBCE837ACC	VAL+22
ALL^IBCE837ACC	VAL+56
UP^IBCE837ACC	VAL+16, CHKINS+36, CHKINS+37, CHKINS+38, CHKINS+39, CHKINS+40, CHKINS+47, CHKINS+48, CHKINS+51, CHKINS+57 , CHKINS+62, CHKINS+70, PCP+12, PCP+27, PCP+42
USERUP^IBCE837ACC	VAL+17
SET^IBCE837ACC1	20+6, 22+4, 22+5, DT+3, DT+4, CHK35593+54, CHK35593+61
UPDATE^IBCE837ACC2A	CHKINS+54, CHKINS+59, CHKINS+64, CHKINS+67, CHKINS+68
PAT^IBCE837ACC4	22+8
$$GETTAX^IBCEF73A	CHK35593+48, CHK35593+51
ALL^IBCNS1	CHKINS+14
$$PLCOV^IBCNSU3	CHKINS+28
$$CODEN^ICDEX	D+4
$$OUTPTPR^SDUTL3	CHK35593+27, PCP+4
$$SITE^VASITE	VAL+21
$$QI^XUSNPI	CHK35593+23

FileNo	Call Tags
^DPT - [#2]	GET1^DIQ
^VA(200 - [#200]	GET1^DIQ
^IBE(350.9 - [#350.9]	GET1^DIQ
^IBA(355.3 - [#355.3]	GET1^DIQ
^IBA(355.93 - [#355.93]	GET1^DIQ
^DIC(36 - [#36]	GET1^DIQ
^IBA(362.3 - [#362.3]	Classic Fileman Calls
364.96	GET1^DIQ

Name	Line Occurrences (* Changed, ! Killed)
^DIC(36 - [#36]	CHKINS+33
^IBA(362.3 - [#362.3]	D+2
^IBA(364.9 - [#364.9]	VAL+12, VAL+14, VAL+20, VAL+21, VAL+23, CHKINS+36, CHKINS+37, CHKINS+38, CHKINS+39, CHKINS+40 , PCP+11, PCP+26, PCP+41
^IBA(364.91 - [#364.91]	PCP+10
^IBE(355.31 - [#355.31]	CHKINS+25
^TMP("IB837ACC"	VAL+8!, VAL+42, CHKINS+51, CHKINS+52, CHKINS+53, CHKINS+57, CHKINS+58, CHKINS+62, CHKINS+63, CHKINS+65 , CHKINS+66, CHKINS+67, CHKINS+70, CHKINS+72, CHK35593+20, CHK35593+55, CHK35593+62, PCP+5, PCP+8, PCP+9 , PCP+18, PCP+20, PCP+23, PCP+25, PCP+32, PCP+34, PCP+37, PCP+39, PCP+40

Name	Line Occurrences
$$CHK35593	20+5
$$TOC	CHKINS+32
@(	VAL+51
NEXT	20+3, 20+8, 20+9, 22+8, 22+11

Name	Field # of Occurrence
^(	VAL+20, PCP+26, PCP+41
^($J	CHKINS+65, CHKINS+66*
^(72	PCP+37
^(82	PCP+23

Local Variables

Legend:

>>	Not killed explicitly
*	Changed
!	Killed
~	Newed

Name	Field # of Occurrence
>> %	VAL+13
ARG	VAL+3~
ARG(	VAL+25, VAL+27, VAL+28, VAL+35, VAL+40, 20+4, 20+5, 20+6, 22+4, 22+5 , 22+8, 22+10, 22+13, 22+17, NEXT+1, NEXT+2, DT+2, CHK35593+20
ARG("SEG"	VAL+20*
B	VAL+3~
D	VAL+3~
D0	VAL+6~
D1	VAL+6~
DA	D+5!, D+8!, VAL+23, PCP+17~, PCP+26, PCP+31~, PCP+41*
DA(1	VAL+23, PCP+26, PCP+41*
DATE	DT+1~, DT+2*, DT+3, DT+4
DD	D+5!, D+6!, D+8!
DFN	VAL+3~
DG	VAL+6~
DGRVRCAL	VAL+6~
DI	VAL+3~
DIC	D+5!, D+6*, D+8!, VAL+3~
DIC("DR"	D+6*
DIC(0	D+6*
DICR	VAL+3~
DIE	D+5!, D+8!
DIK	VAL+3~, VAL+23, PCP+17~, PCP+26, PCP+31~, PCP+41*
DIV	VAL+6~
DLAYGO	D+5!, D+6*, D+8!
DO	D+5!, D+6!, D+8!
DOB	VAL+3~, 22+13*
DR	D+5!
FIELD	DT~, DT+3, DT+4
I	D+4, VAL+3~, VAL+20, CHK35593+14~, CHK35593+28*
IB3553	CHKINS+5~, CHKINS+21*, CHKINS+28
IB35531	CHKINS+5~, CHKINS+25*, CHKINS+28
IB36491	PCP+10~*, PCP+11
IBACCRPC1	VAL+10!
IBAT	VAL+3~
IBAU	VAL+3~
IBAUTH	VAL+7~
IBBAD	VAL+6~, VAL+24, VAL+30, VAL+53
IBBNO	VAL+3~
IBCAT	CHKINS+5~, CHKINS+23*, CHKINS+24, CHKINS+25
IBCID	CHKINS+5~, CHKINS+6*, CHKINS+48
IBCL	VAL+3~
IBCOB	CHKINS+5~, CHKINS+41*, CHKINS+50, CHKINS+56, CHKINS+61
IBCPT	VAL+5~
IBCPTS	VAL+5~
>> IBDIG(	D+7*
IBDOB	VAL+3~, 22+13*
IBDOD	22+3~, 22+4*
IBDOS	VAL+3~, CHKINS~, CHKINS+14, CHKINS+28, CHKINS+45
IBDUP	VAL+7~
IBER	VAL+3~
IBERRMSG	VAL+4~
IBEU	VAL+4~
IBEVDT	VAL+4~
IBEXP	CHKINS+5~, CHKINS+21, CHKINS+47, CHKINS+48*, CHKINS+73
IBFDT	VAL+4~
IBFT	VAL+5~, CHKINS~, CHKINS+23, CHKINS+29, CHKINS+30, CHKINS+65, PCP~, PCP+2, PCP+16, PCP+18 , PCP+30
IBGP	CHKINS+5~, CHKINS+21*, CHKINS+29, CHKINS+30, CHKINS+53
IBI	VAL+3~, VAL+25, NEXT+1, NEXT+2*
IBIFN	D+2, D+6, VAL+3~
IBINS	CHKINS+5~, TOC~, TOC+3
IBINS(	CHKINS+21, CHKINS+32, CHKINS+33, CHKINS+41, CHKINS+45, CHKINS+52, CHKINS+54, CHKINS+58, CHKINS+59, CHKINS+63 , CHKINS+64
IBINS("S"	CHKINS+17, CHKINS+19
IBINS(0	CHKINS+15
IBINSNAME	CHKINS~, CHKINS+33*, CHKINS+36, CHKINS+37, CHKINS+38, CHKINS+39, CHKINS+40, CHKINS+47, CHKINS+48, CHKINS+51 , CHKINS+57, CHKINS+62
IBIO	VAL+3~, VAL+24*, CHKINS+23
IBLDOS	VAL+3~
IBLOC	VAL+4~
IBM	VAL+4~
IBMID	CHKINS+5~, CHKINS+7*, CHKINS+47
IBMOD	VAL+4~
IBMRAF	VAL+4~
IBND	VAL+7~, VAL+13*
IBND0	VAL+4~
IBNDM	VAL+4~
IBNOTE	VAL+5~
IBPATFN	VAL+4~
IBPATICN	VAL+7~, 22+8*
IBPATIEN	VAL+7~, CHKINS~, CHKINS+14, CHKINS+44, CHK35593+27, PCP~, PCP+4
IBPATLN	VAL+4~, 22+17
IBPATMN	VAL+4~
IBPATSSN	VAL+4~, 22+17*
IBPAYERID	VAL+7~, 22+10*
IBPDX	VAL+7~
IBPN	VAL+4~
IBPN1	VAL+4~, 20+4*, 20+6
IBPN2	VAL+5~, CHK35593+15, CHK35593+56, CHK35593+57*
IBPNPI	VAL+5~, CHK35593~, CHK35593+18, CHK35593+20*, CHK35593+23
IBPT	VAL+5~
IBPT1	CHK35593~, CHK35593+20, CHK35593+34, CHK35593+39, CHK35593+41, CHK35593+52, CHK35593+54, CHK35593+55, CHK35593+60, CHK35593+61 , CHK35593+62
IBPT2	CHK35593+14~, CHK35593+37*, CHK35593+39, CHK35593+41, CHK35593+43
IBPW	22+3~, 22+5*
IBREF	VAL+7~
IBREFD9	VAL+4~
IBSEG	VAL+3~, VAL+24, VAL+25, VAL+27, VAL+28, VAL+35, VAL+40, 20+4, 20+5, 20+6 , 22+4, 22+5, 22+8, 22+10, 22+13, 22+17, DT+2, CHK35593+20
IBSEGN	VAL+3~, NEXT+1, NEXT+2
IBSITE	VAL+3~, VAL+22*
IBSITE(1	VAL+21*, VAL+22
IBSLINE	VAL+3~, VAL+40*, VAL+41, VAL+42, CHK35593~, CHK35593+54, CHK35593+55, CHK35593+61, CHK35593+62
IBSPID	VAL+5~
IBTNUM	VAL+7~
IBTOC	TOC+1~, TOC+3*, TOC+4
IBTOP	CHKINS+5~, CHKINS+21*, CHKINS+40, CHKINS+53
IBX	VAL+6~, VAL+23, CHKINS+5~, CHKINS+19, CHKINS+28, CHKINS+29, CHKINS+30, CHKINS+47, CHKINS+48, CHKINS+52 , CHKINS+53, PCP+17~, PCP+26, PCP+31~, PCP+41
IBX1	CHKINS+5~, CHKINS+19, CHKINS+21, CHKINS+32, CHKINS+33, CHKINS+41, CHKINS+45, CHKINS+52, CHKINS+54, CHKINS+58 , CHKINS+59, CHKINS+63, CHKINS+64, PCP+17~, PCP+25, PCP+26, PCP+31~, PCP+40*, PCP+41
IBX12	VAL~, VAL+2, VAL+12, VAL+14, VAL+16, VAL+17, VAL+20, VAL+21, VAL+23, VAL+41 , CHKINS+36, CHKINS+37, CHKINS+38, CHKINS+39, CHKINS+40, CHKINS+47, CHKINS+48, CHKINS+51, CHKINS+54, CHKINS+57 , CHKINS+59, CHKINS+62, CHKINS+64, CHKINS+67, CHKINS+68, CHKINS+70, PCP+12, PCP+26, PCP+27, PCP+41 , PCP+42
IBXARRAY	VAL+4~
IBXARRY	VAL+4~
IBXERR	VAL+4~
LOOP	VAL+3~, VAL+24, VAL+35, VAL+36, VAL+40, VAL+51*
OK	VAL+3~, 20+5, 20+6, CHK35593+14~, CHK35593+25, CHK35593+28, CHK35593+31, CHK35593+34, CHK35593+36, CHK35593+39* , CHK35593+41, CHK35593+43, CHK35593+47, CHK35593+48, CHK35593+50, CHK35593+52, CHK35593+56, CHK35593+59
OK1	CHK35593+30~, CHK35593+47, CHK35593+48, CHK35593+49, CHK35593+51, CHK35593+52
PCP	CHK35593+14~, CHK35593+27, CHK35593+60, CHK35593+61, CHK35593+62, PCP+3~, PCP+4, PCP+20, PCP+34
RDATES	VAL+6~
RES	CHK35593+14~, CHK35593+23*, CHK35593+28
RES1	CHK35593+14~, CHK35593+28*, CHK35593+29, CHK35593+31, CHK35593+37, CHK35593+48, CHK35593+51, CHK35593+54, CHK35593+55, CHK35593+56 , CHK35593+57
SEG	VAL+3~, VAL+28*, VAL+30, VAL+31, VAL+32, VAL+34, VAL+39, VAL+43, VAL+44, VAL+45 , VAL+46, VAL+47, VAL+48, VAL+49, VAL+50, VAL+51, 20+1, 22+2, 22+7, 22+13 , 22+14
SEG2	VAL+3~, VAL+28*, 20+2, 20+8, 20+9, 22+8, 22+9, 22+15
VA	VAL+6~
VADM	VAL+6~
X	D+6, VAL+3~, VAL+19, VAL+20, VAL+41, VAL+42, CHKINS+5~, CHKINS+47, CHKINS+48, CHKINS+52* , CHKINS+58, CHKINS+63
X1	D+1~, D+4, CHKINS+5~, CHKINS+45
X1D	D+1~, D+4*, D+6
X2	CHKINS+5~, CHKINS+45*
XBP	PCP+3~, PCP+5*, PCP+9
XD	D~, D+4
XDT	DT+1~, DT+3, DT+4
XIBPNPI	PCP+3~, PCP+4*, PCP+18, PCP+20, PCP+32, PCP+34
XNPI	CHK35593+14~
XORD	D+1~, D+2, D+6, D+7
XX	VAL+3~
Y	D+1~, D+7, VAL+3~, VAL+13*
